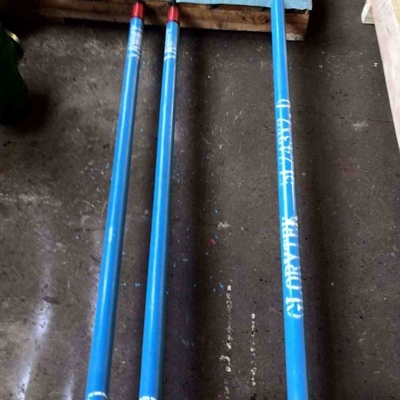

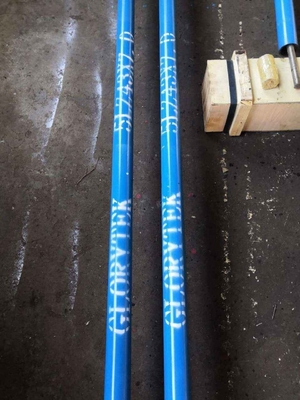

Straight Type 1 11/16(43mm) Screw Downhole Mud Motor For Directional Drilling
One lead of the Downhole Mud Motor is one level, and the mud flow used in the field should be within the recommended range of use, otherwise it will affect the efficiency of the Downhole Mud Motor and even increase the wear and tear.
The performance parameters of the screw motor are the main performance parameters of the screw drill. The theoretical output torque of the motor is proportional to the pressure drop of the motor, and the output revolution is proportional to the input mud flow. With the increase of the load, the revolution of the drilling tool decreases, so as long as you control the reading of the pressure gauge on the ground and the flow rate of the pump, you can Control the torque and rotational speed of downhole drilling tools. We will recommend the most suitable model according to customer's requirements.
Features of Standard Down-hole Motor
Standard power section; the transmission shaft is lubricated by drilling fluid; available in vertical, single-bend and double-bend types; maximum working temperature is 120°C.
Features of Saturated Saltwater Mud Resistant Down-hole Motor
The special coating layer of rotor has stronger ability of corrosion and wear resistance, enabling down-hole motors to work a long time in saturated saltwater mud.
| 钻具型号 | 5LZ43×7.0-3.2 | 5LZ43×7.0-3.5 | 5LZ43×7.0V | |
| Model | 1695632 | 1695635 | 1695650 | |
| 适合井眼 | in | 1 7/8 – 3 47.6-76.2 | 1 7/8 – 3 47.6-76.2 | 1 7/8 – 3 47.6-76.2 |
| Bit Size | mm | |||
| 外径 | in | 1 3/4 44 | 1 3/4 44 | 1 3/4 44 |
| OD | mm | |||
| 可调角度 | ° | 0 | 0 | 0 |
| ABH | ||||
| 马达头数 | 5:06 | 5:06 | 5:06 | |
| Lobe | ||||
| 马达级数 | 3.2 | 3.5 | 5 | |
| Stages | ||||
| 马达压降 | MPa | 3.2 | 3.5 | 5 |
| Pressure | PSI | 464 | 508 | 725 |
| 流量范围 | L/s | 0.2-0.35-0.5 | 1-1.7-2.5 | 1-1.7-2.5 |
| Flow Rate | GPM | 3.2-5.6-8 | 15-28-40 | 15-28-40 |
| 每转排量 | L/r | 0.15 | 0.27 | 0.27 |
| Flow Per Revolution | r/gal | 25.3 | 14 | 14 |
| 钻头转速 | rpm | 81-142-202 | 222-378-555 | 222-378-555 |
| Bit Speed | ||||
| 工作扭矩 | N·m | 60 | 105 | 150 |
| Torque | Ft-lbs | 44 | 77 | 110 |
| 最大扭矩 | N·m | 90 | 158 | 225 |
| Max.torque | Ft-lbs | 66 | 116 | 166 |
| 输出功率 | kw | 1.0-2.5 | 1.8-4.5 | 2.6-6.4 |
| Output Power | HP | 1.32-3.3 | 2.4-6 | 3.5-8.5 |
| 推荐钻压 | KN | 2.5 | 2.5 | 2.5 |
| Weight on Bit | lb | 550 | 550 | 550 |
| 最大钻压 | KN lb | 6 1320 | 6 1320 | 6 1320 |
| Max. Weight on Bit | ||||
| 连接螺纹 | Upper(Box) | 1/2 NPT | 1AMMT | 1AMMT |
| Connection (REG) | ||||
| Lower(Box) | M16x1.5(Pin) | 1AMMT | 1AMMT | |
Packing: Standard Exporting Packing for Downhole Mud Motor
Delivery: Normally 10-15 days after your advanced payment.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
FAQ
How to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
