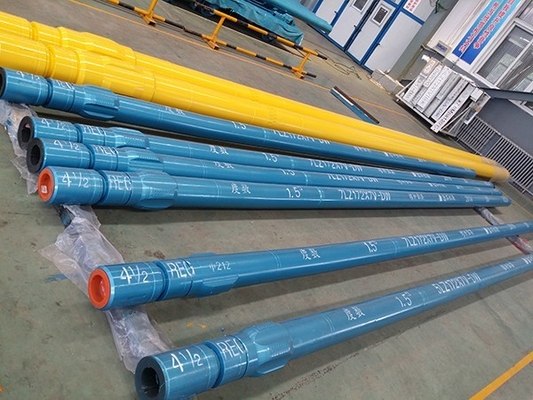

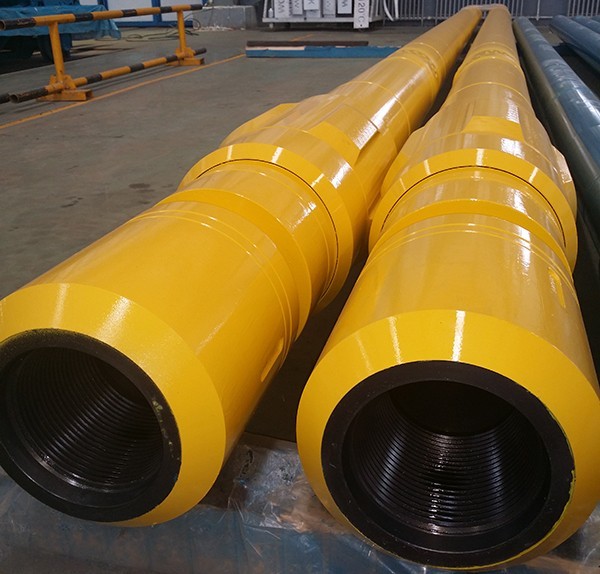

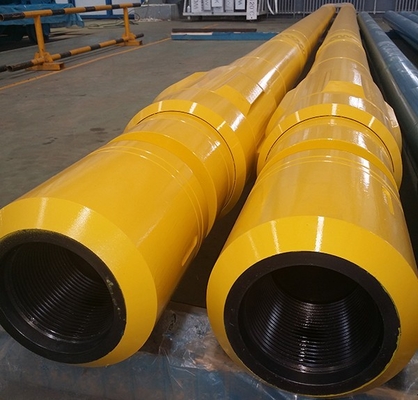

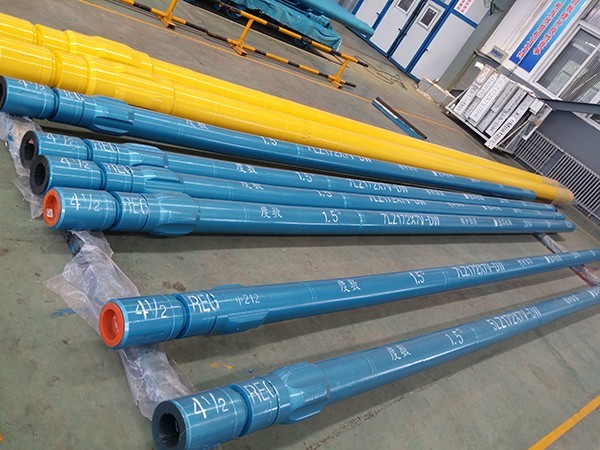

95mm Downhole Drilling Adjustable 0-3degree Downhole Mud Motor for HDD Drilling
Downhole Mud Motor is one kind of positive displacement downhole motor, with working principle is to convert the high pressure fluid power of mud into mechanical energy for bit rotation. It is widely used in oil field and mine directional well and horizontal well, cluster Wells and vertical Wells, drilling, deflecting, adjusting azimuth, coring, reaming, side tracking and workover treatment, and also applied in some special operations as compound drilling and traversing, etc.
Features of High Flow Rate Downhole Mud Motor
The adoption of hollow rotor cooperating with hard alloy jet nozzle of different sizes increases input flow rate and proppant carrying capacity.
Features of Uniform Wall Thickness Downhole Mud Motor
This down-hole motor can effectively solve the problem of uneven thickness of motor's rubber. Its characteristics are as follows: high pressure enduring for single grade, large output power, wide range of high efficiency, etc.
| 钻具型号 | 5LZ95×7.0IV | 5LZ95×7.0V | 7LZ95×7.0Ⅲ | |
| Model | 3755640 | 3755650 | 3757830 | |
| 适合井眼 | in | 4 5/8 – 6 117.5-152.4 | 4 5/8 – 6 117.5-152.4 | 4 5/8 – 6 117.5-152.4 |
| Bit Size | mm | |||
| 外径 | in | 3 3/4 96 | 3 3/4 96 | 3 3/4 96 |
| OD | mm | |||
| 可调角度ABH | ° | 0-4 | 0-4 | 0-4 |
| 马达头数Lobe | 5:06 | 5:06 | 7:08 | |
| 马达级数Stages | 4 | 5 | 3 | |
| 马达压降 | MPa | 4 | 5 | 3.0 435 |
| Pressure | PSI | 580 | 725 | |
| 流量范围 Flow Rate | L/s | 5-8-12 80-127-190 | 5.4-9.3-13.2 85.6-148-210 | 6-9-12 95-143-190 |
| GPM | ||||
| 每转排量 | L/r | 2.5 1.5 | 2.6 1.46 | 3.13 1.2 |
| Flow Per Revolution | r/gal | |||
| 钻头转速 | rpm | 120-192-288 | 125-215-305 | 115-173-230 |
| Bit Speed | ||||
| 工作扭矩 | N·m | 1190 880 | 1480 1091 | 1200 886 |
| Torque | Ft-lbs | |||
| 最大扭矩 Max.torque | N·m | 1785 1316 | 2220 1640 | 1800 1330 |
| Ft-lbs | ||||
| 输出功率 | kw | 15-54 20-72.4 | 19-71 25.5-95 | 15-30 20.1-40.2 |
| Output Power | HP | |||
| 推荐钻压 | KN | 25 5500 | 25 5500 | 25 5500 |
| Weight on Bit | lb | |||
| 最大钻压 Max. Weight on Bit | KN lb | 50 11000 | 50 11000 | 50 11000 |
| 连接螺纹Connection (REG) | Upper (Box) | 2 7/8 | 2 7/8 | 2 7/8 |
| Lower (Box) | 2 7/8 | 2 7/8 | 2 7/8 | |
Packing: Standard Exporting Packing for Downhole Mud Motor
Delivery: Normally 10-15 days after your advanced payment.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
FAQ
How to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
