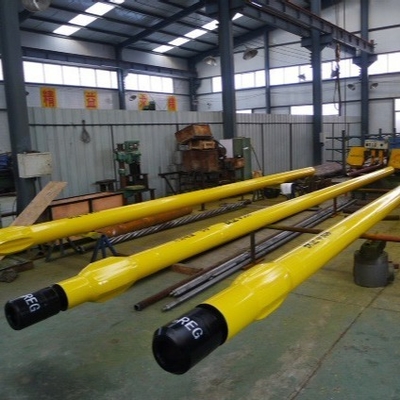

6 3/4'' API Directional Drilling Downhole Mud Motor For Pipeline
Directional drilling downhole mud motor is a kind of downhole dynamic drilling tool upon the power of drilling mud. The mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the mud pump, to push the rotor into rotating, and to transmit the torque and speed onto the drill bit. The downhole mud motor property mainly depends upon its property parameters.
| Model | 5LZ172×7.0Ⅴ | |
| Bit Size | in mm |
8 3/8– 9 7/8 212.7-250.8 |
| OD | in mm |
6 3/4 174 |
| ABH | ° | 0-3/0-2 |
| Lobe | 5:6 | |
| Stages | 5 | |
| Pressure | MPa PSI |
5.0 725 |
| Flow Rate | L/s GPM |
24-28-32 380-444-507 |
| Flow Per Revolution | L/r r/gal |
10.5 0.36 |
| Bit Speed | rpm | 137-160-183 |
| Torque | N·m Ft-lbs |
6600 4871 |
| Max.torque | N·m Ft-lbs |
9900 7300 |
| Output Power | kw HP |
96-142 128.6-190.3 |
| Weight on Bit | KN lb |
100 22000 |
| Max. Weight on Bit | KN lb |
180 39600 |
| Connection (REG) | Upper box thread | 4 1/2 |
| down box thread | 4 1/2 | |
| Length | mm Ft |
8180 26.8 |
| Weight | kg lb |
1122 2468 |
| Stator Length | mm Ft |
4940 16.2 |
Downhole Mud Motor is mainly used in mining directional well and oil field, and horizontal well, vertical Wells, drilling, and also applied in some special operations as compound drilling and traversing, etc.
Downhole mud motors have various rotation rate and torque.
It is high efficiency.
And it is wide flow range.
Downhole motor is smoothly operation while drilling.
It is easy maintenance.
It has characteristics of high reliability.
It is long service life.

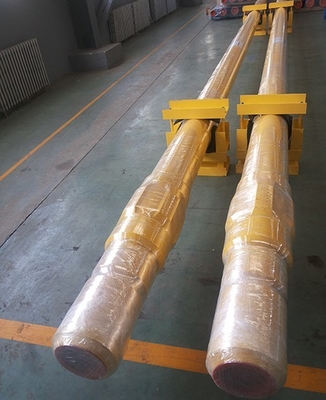

Packing: The downhole mud motor is normally packed by wooden boxes, or steel frame.
Delivery: Normally 10-15 days after your down payment.
Departure port: Tianjin port by sea or Beijing airport by air.
