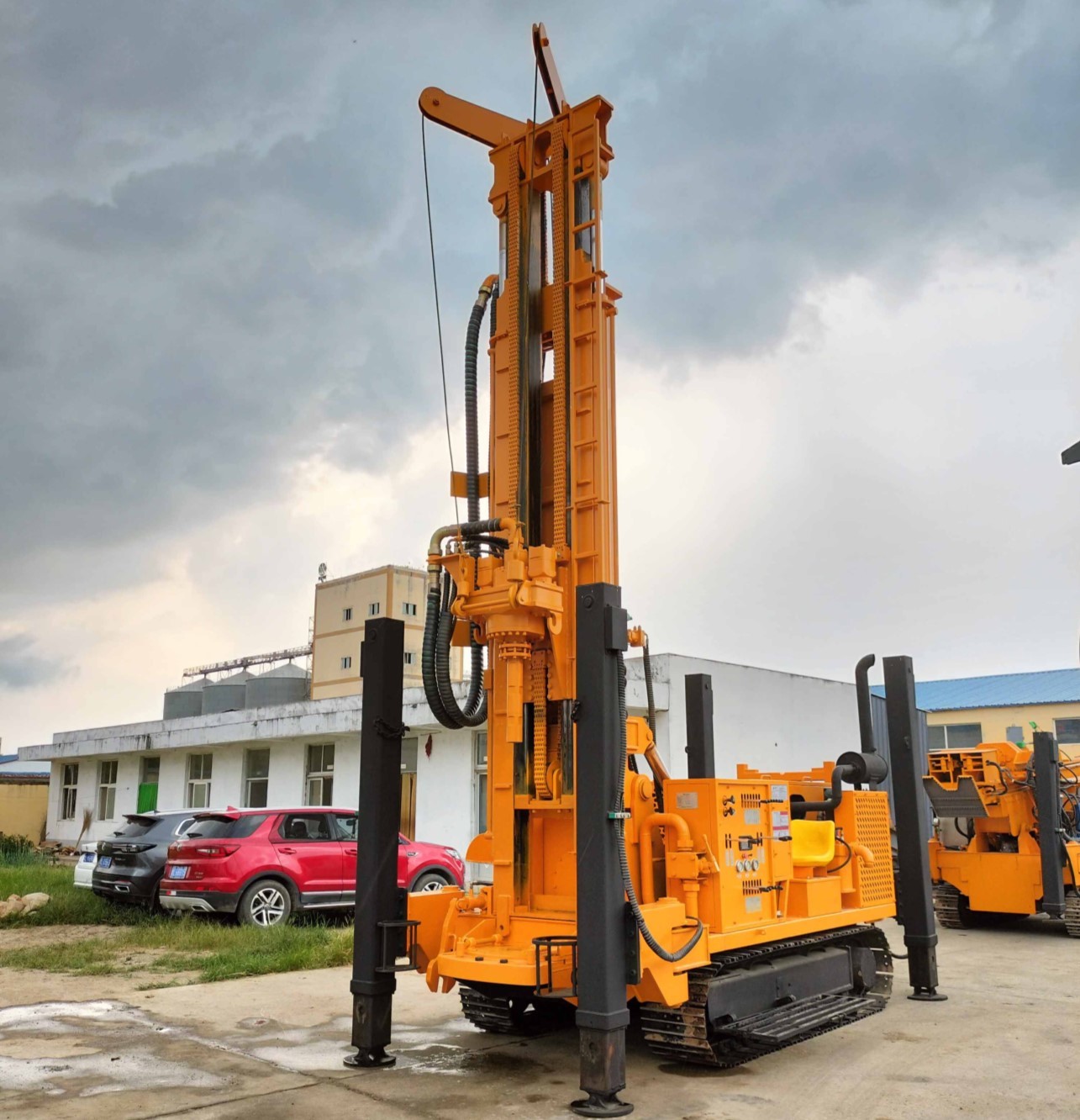

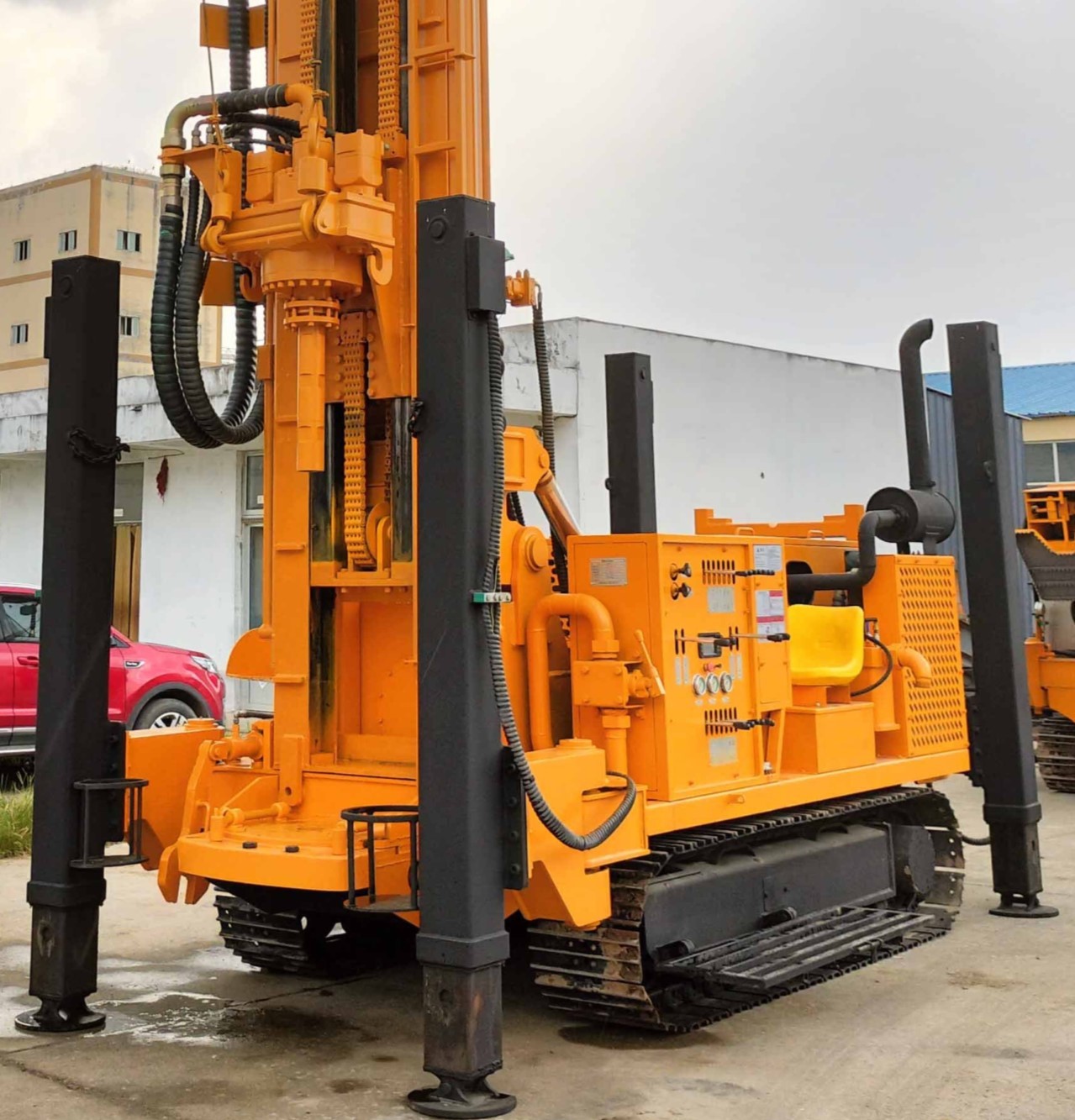

GL800S 800m Big Hole Casing DTH Pneumatic Borehole Drilling Rig with Crawler Chassis
Description:
GL800S crawler-type multi-function water well drilling rig is a new type, high-efficiency and multi-functional hydraulic water well drilling rig, which is mainly used for drilling water wells, monitoring wells, dewatering wells, rescue wells, gas layer mining and other exploration projects.
Rock drilling uses down-the-hole hammer operation, air slag discharge, and the footage efficiency is ten times that of traditional rotary drilling.
Tehnical Parameter:
| Max drilling depth | M | 800 |
| Drilling diameter | mm | 105-500 |
| Air pressure | Mpa | 1.2-3.5 |
| Rod length | m | 3-6 |
| Rod diameter | mm | 89-102-114-127-140 |
| Main shaft pressure | T | 8 |
| Lifting force | T | 30-35 |
| Total Rotating stroke | M | 6.8 |
| Max Rotating torque | Nm | 17000 |
| Max Rotating speed | r/min | 100 |
| Winch liftng force | T | big winch 2.5 |
| small winch 1.0 | ||
| Jacks stroke | m | 1.75 |
| Moving speed | km/h | 2.5 |
| Climbing ability | slope | 21° |
| Weight of the rig | T | 13.8 |
| The engine | Weichai176KW/Yuchai 191KW | |
| The main pump | K3V180 Plunger pump | |
| Dimension | mm | 5700-5100x2000*2800 |
| Working condition | Loose layer and bedrock | |
| Drilling method | Hydraulic rotation and propulsion, DTH hammer or mud drilling | |
