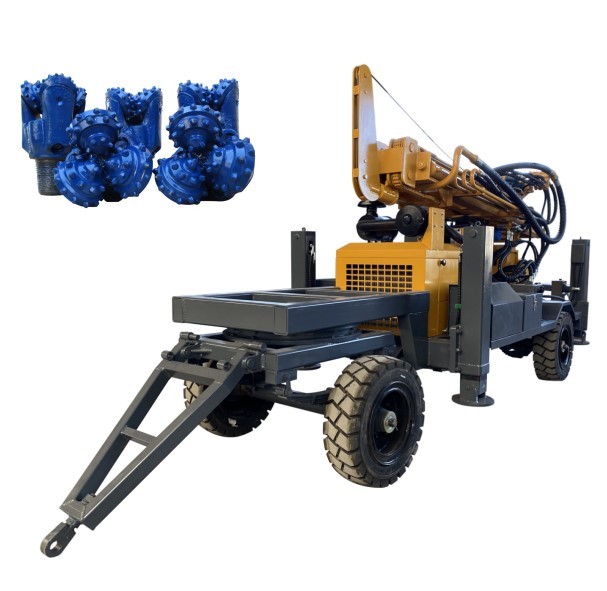

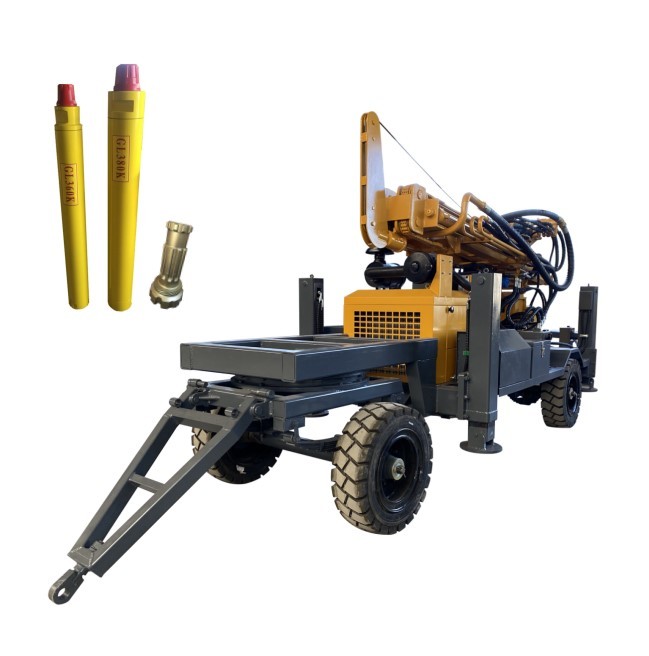

GL260T 260m Diesel Engine Driven Trailer Borehole Drilling Rig with Full Hydraulic System
Product Description
GL260T Borehole Drilling Rig is equpped with full hydraulic systems, which is designed to drill 600m water wells. It is driven by 70kw diesel engine. It is mounted on steel crawler chassis, which make it easy to move.
GL260T Borehole Drilling Rig is used with 76mm or 89mm diameter drill rods. You can choose the length of 1.5m, 2.0m, 3.0m drill rods. We can supply drill rods with good quality. Actually we can supply full set of drilling tools, including the drill rods, tricone bits, DTH hammer and bits, adaptors, etc.
Tehnical Parameter:
| The hole diameter (mm) | 140-305 |
| Drilling depth (m) | 260 |
| Drill pipe diameter (mm) | φ76 ,φ89 |
| Drill pipe length(m) | 1.5m, 2.0m, 3.0m |
| One-time stroke (m) | 3.3 |
| Walking speed(km/h) | 2.5 |
| Climbing angles(Max.) | 30 |
| Air pressure(MPA) | 1.7-3.0 |
| Air consumption (m3 /min) | 17-31 |
| Rotating speed(rpm) | 45-70 |
| Rig lifting force(T) | 15 |
| Rapid rise speed(m/min) | 24 |
| Fast feeding speed(m/min) | 28 |
| Hoisting force of winch (T) | 1.5 |
| High leg stroke(m) | 1.4 |
| The feeding efficiency(m/h) | 10-35 |
| Diesel engine Brand | Xichai |
| Power(kw) | 70 |
| Rotating torque(N.m) | 4000-5300 |
| Dimension(mm) | 4000x1850x2300 |
| Width of loading(m) | 2.73 |
| The weight (T) | 6.5 |
| Equipped with hammer | Medium and high air pressure series |
Features:
1. No problem to drill 260m deep.
2. Both available for air compressor drilling and mud pump drilling
3. Steel crawler chassis, strong and easy moving
4. Widely application, can be used in various layers
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. We can supply various type of borehole drill rigs, such as trailer types, trailer types, and truck type, etc.
We have mature production lines and strict quality control team. In addition to various drilling rigs, we can also provide mud pumps, air compressors, drilling tools and other drilling products.
