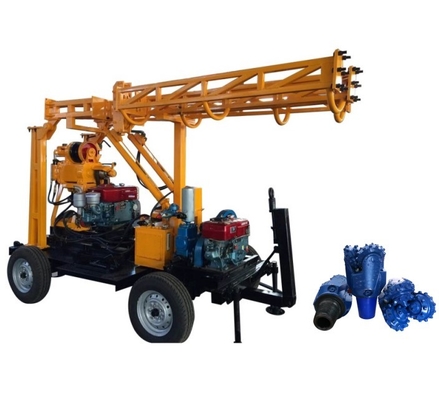

GL250 Crawler Trailer Skid 250m Borehole Drilling Rig with Compact Structure
Tehnical Parameter:
| Models | XY-1 | XY-1A | GL200 | GL250 | GL300 | ||
| Drill | Drilling depth | 100m | 100/180 m | 250m | 250m | 300m | |
| Initial hole dia | 110mm | 150mm | 200mm | 200mm | 200mm | ||
| Final hole dia | 75mm | 75mm | 75mm | 75mm | 75mm | ||
| Drill rod dia | 42mm | 43mm | 50mm | 50mm | 50mm | ||
| Angle range | 75°-90° | 75°-90° | 75°-90° | 75°-90° | 75°-90° | ||
| Dimensions(L×W×H) | 1640×1030×1440 (mm) | 1620×970×1560(mm) | 1700×1030×1270 (mm) | 1700X1030X1270(mm) | 1070×1030×1270 (mm) | ||
| Swivel Head | Spindle stroke | 450mm | 450mm | 450mm | 450mm | 450mm | |
| Spindle lifting capacity max | 25KN | 25KN | 30KN | 30 KN | max 45 KN | ||
| Hoist | Max .lifting capacity(single rope) | 10KN | 15KN | 20/40/90/180 | 20KN | 20KN | |
| Power | diesel engine | Model | S1100A2 | S1100A2 | L28N | L28N | L28N |
| Rated power | 10.3KW | 10.3KW | 16.2KW | 20KW | 20KW | ||
| Rated speed | 2000r/min | 2200r/min | 2200r/min | 2000r/min | 2000r/min | ||
| motor | Model | Y132M-4 | Y160M‐4 | Y160L-4 | Y160L-4 | Y160L-4 | |
| Rated power | 7.5kW | 11KW | 11KW | 15KW | 15KW | ||
| Rated speed | 1440r/min | 1460r/min | 1460r/min | 1440r/min | 1440r/min | ||
Features:
1. 250m is the widely drilled depth
2. It can be based on crawler or trailer chassis.
3. Easy operation and maintain.
4. Low cost needed.
