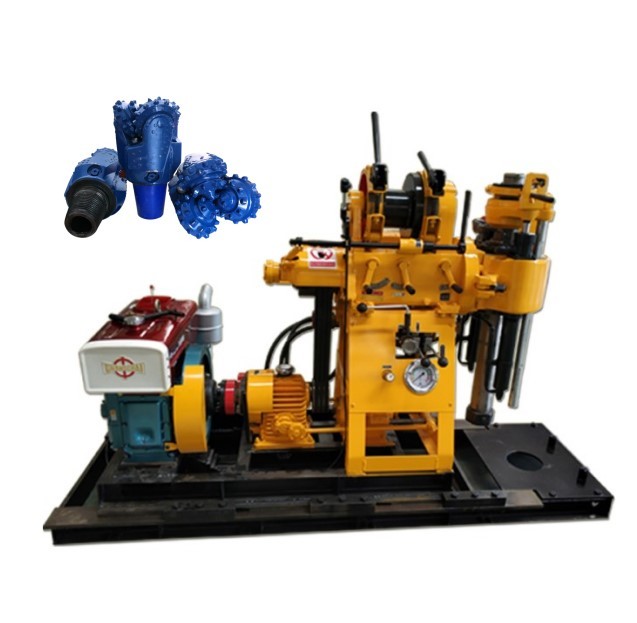

GL200 Small Mud Pump Drilling Mini Borehole Drilling Rig for Shallow Well Drilling

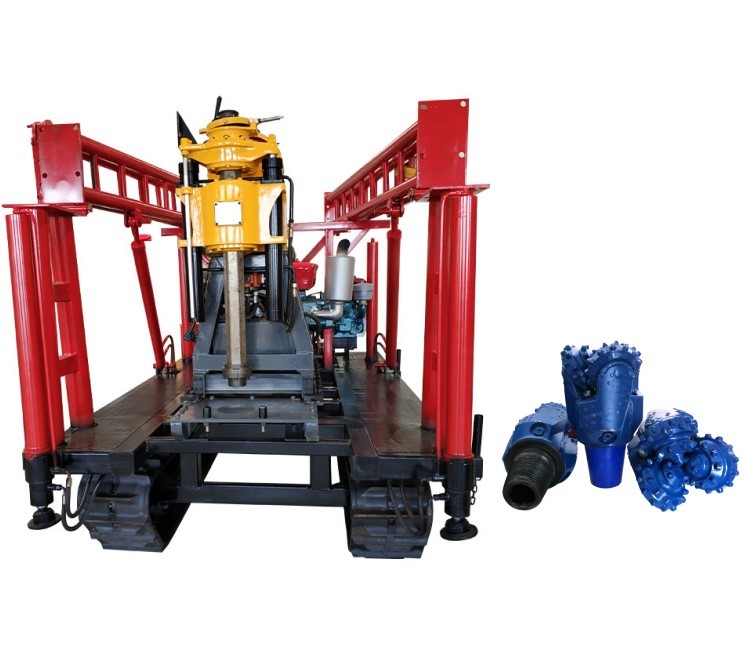

The GL200 Mini Borehole Drilling Rig is a versatile drilling rig that can drill water wells as well as core. We can equip it with trailer chassis and crawler chassis, as well as skid type. Each type is good and cheap.
The GL200 Mini Borehole Drilling Rig is a small drilling rig suitable for drilling water wells with a mud pump. This rig is usually used with 50mm drill pipe. Tricone roller bits can also be used with this machine. According to the degree of softness and hardness of the customer's drilling formation, we can provide steel-tooth roller cone drills or TCI tricone bit as well.
Tehnical Parameter:
| Models | XY-1 | XY-1A | GL200 | GL250 | GL300 | ||
| Drill | Drilling depth | 100m | 100/180 m | 250m | 250m | 300m | |
| Initial hole dia | 110mm | 150mm | 200mm | 200mm | 200mm | ||
| Final hole dia | 75mm | 75mm | 75mm | 75mm | 75mm | ||
| Drill rod dia | 42mm | 43mm | 50mm | 50mm | 50mm | ||
| Angle range | 75°-90° | 75°-90° | 75°-90° | 75°-90° | 75°-90° | ||
| Dimensions(L×W×H) | 1640×1030×1440 (mm) | 1620×970×1560(mm) | 1700×1030×1270 (mm) | 1700X1030X1270(mm) | 1070×1030×1270 (mm) | ||
| Swivel Head | Spindle stroke | 450mm | 450mm | 450mm | 450mm | 450mm | |
| Spindle lifting capacity max | 25KN | 25KN | 30KN | 30 KN | max 45 KN | ||
| Hoist | Max .lifting capacity(single rope) | 10KN | 15KN | 20/40/90/180 | 20KN | 20KN | |
| Power | diesel engine | Model | S1100A2 | S1100A2 | L28N | L28N | L28N |
| Rated power | 10.3KW | 10.3KW | 16.2KW | 20KW | 20KW | ||
| Rated speed | 2000r/min | 2200r/min | 2200r/min | 2000r/min | 2000r/min | ||
| motor | Model | Y132M-4 | Y160M‐4 | Y160L-4 | Y160L-4 | Y160L-4 | |
| Rated power | 7.5kW | 11KW | 11KW | 15KW | 15KW | ||
| Rated speed | 1440r/min | 1460r/min | 1460r/min | 1440r/min | 1440r/min | ||
Features:
1. Wide range of uses, for water wells and geological exploration
2. Compact and lightweight
3. Affordable and cost-effective
4. Easy to move and operate
