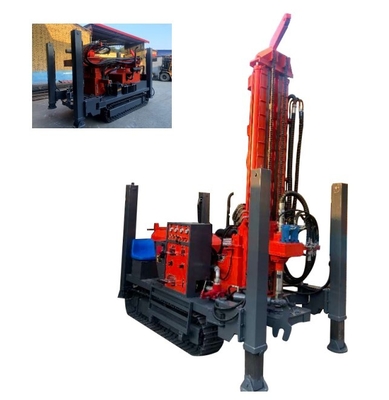

GL200S 200m Fully Hydraulic Tracked Type Borehole Drilling Rig with 77KW Diesel Engine
Description:
GL200S 200m Fully Hydraulic Tracked Type Borehole Drilling Rig with 77KW Diesel Engine is one of our best selling models, the deepest drilling depth can reach 200m. Usually the hole diameter of drilling is between 105mm and 300mm.
This rig is usually suitable for use with an air compressor. The air pressure of the suitable air compressor is 1.25-3.5Mpa; the air consumption of the suitable air compressor is 16-55m³/min.
Usually this machine uses 76 or 89mm diameter drill pipe, usually 3m long. We can also provide other drilling tools such as drill bits.
Tehnical Parameter:
| Technical Parameter | |
| Max drilling depth | 200m |
| Drilling diameter | 105-300mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m |
| Rod diameter | 76/89mm |
| Main shaft pressure | 4T |
| Lifting force | 16T |
| Fast lifting speed | 20m/min |
| Fast forwarding speed | 40m/min |
| Rotary torque | 6500 N.M |
| Rotary speed | 30/120r/min |
| Winch lifting force | 1.5T |
| High leg stroke | 1.35-1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 5.5T |
| Dimension | 3.9m x 1.8m x 2.3m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 77KW |
