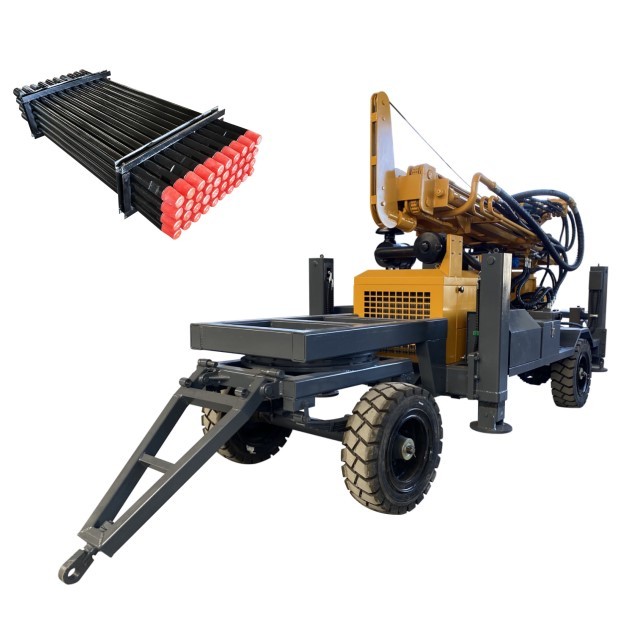

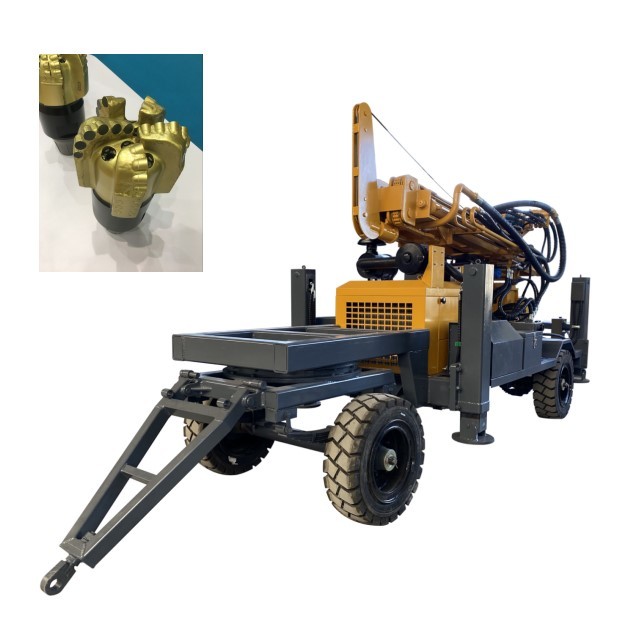

GL260T 260m Drilling Trailer Chassis Full Hydraulic Borehole Drilling Rig for Hard Rock Drilling
Product Description
GL260T Full Hydraulic Borehole Drilling Rig is suitable for different terrains. We design the trailer chassis to carry the main body of the drilling rig, which is easy to operate and move. This rig is fully hydraulic. The power head of hydraulic transmission can realize stepless speed regulation, which can meet different drilling process requirements.
There is no need to use a kelly pipe, which can save a lot of auxiliary time when raising and lowering the drilling tool, thereby improving the pure drilling time; Through hydraulic control, the hydraulic feeding pressure and decompression drilling of the drilling tool can be realized.
Tehnical Parameter:
| The hole diameter (mm) | 140-305 |
| Drilling depth (m) | 260 |
| Drill pipe diameter (mm) | φ76 ,φ89 |
| Drill pipe length(m) | 1.5m, 2.0m, 3.0m |
| One-time stroke (m) | 3.3 |
| Walking speed(km/h) | 2.5 |
| Climbing angles(Max.) | 30 |
| Air pressure(MPA) | 1.7-3.0 |
| Air consumption (m3 /min) | 17-31 |
| Rotating speed(rpm) | 45-70 |
| Rig lifting force(T) | 15 |
| Rapid rise speed(m/min) | 24 |
| Fast feeding speed(m/min) | 28 |
| Hoisting force of winch (T) | 1.5 |
| High leg stroke(m) | 1.4 |
| The feeding efficiency(m/h) | 10-35 |
| Diesel engine Brand | Xichai |
| Power(kw) | 70 |
| Rotating torque(N.m) | 4000-5300 |
| Dimension(mm) | 4000x1850x2300 |
| Width of loading(m) | 2.73 |
| The weight (T) | 6.5 |
| Equipped with hammer | Medium and high air pressure series |
Features:
1. Prefer to used for air drilling, but also can be used for mud drilling
2. Trailer chassis make it is easy to move
3. Full hydralic systems.
4. Cost-effective
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. We can supply various type of borehole drill rigs, such as trailer types, trailer types, and truck type, etc.
We have mature production lines and strict quality control team. In addition to various drilling rigs, we can also provide mud pumps, air compressors, drilling tools and other drilling products.
