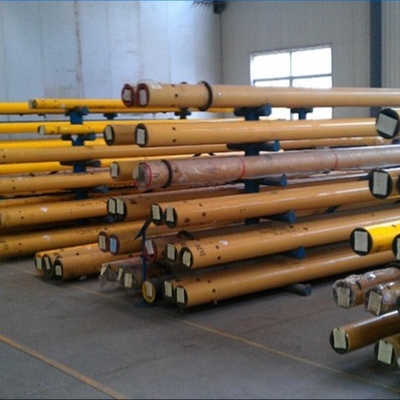

Oil Field Downhole Mud Motor For Oil Well Drilling And Coiled Tubing
API Drilling Chinese Downhole Drilling Mud Motor is a kind of downhole drilling tool powered by mud. The mud from mud pump enters motor by way of bypass valve, and a pressure drop between motor inlet and outlet created, such pressure drop will drive the motor rotator to rotate, and transmit the torque and rotary speed to bit by universal shaft and transmission shaft
The downhole motor property mainly depends upon its property parameters.

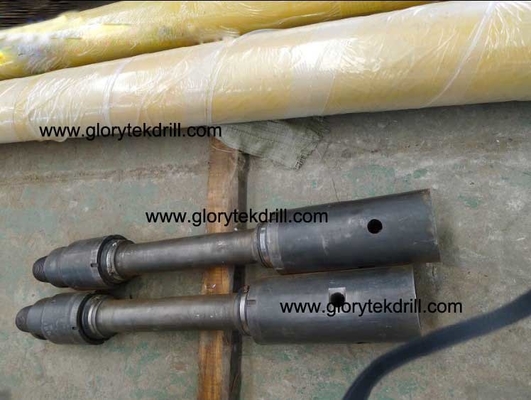

Power Section Assembly consists of stator and rotor. Stator is made by squeezing rubber sleeve on the wall of steel tube. There forms spiral structure with a certain geometric parameter. Rotor is a chrome plated screw rod.
| 5LZ73×7.0 | ||
| Specifications | English | Metric |
| Recommended Hole Size | 3‐3 / 8 to 4‐3 / 8 in | 85.7‐111.1 mm |
| Recommend Flow | 32‐56‐80 gpm | 2‐3.5‐5 l／s |
| Displacement per revolution | 4.2 r/gal | 0.9 L/r |
| Bit Speed | 130‐230‐325 rpm | 130‐230‐325 rpm |
| Motor series | 3 | 3 |
| Motor drop | 348 PSI | 2.4 Mpa |
| Operating torque | 236 lb∙ft | 320 N∙m |
| Delay Dynamic Torque | 413 lb∙ft | 560 N∙m |
| Output Power | 6.4 to 16 hp | 4.8‐12 Kw |
| Recommend working pressure | 3300 lbf | 15KN |
| Max. Working pressure | 4400 lbf | 20KN |
| Box‐up connection | 2‐3 / 8TBG | 2‐3 / 8TBG |
| Box‐down connection | 2‐3 / 8TBG | 2‐3 / 8TBG |
| Length | 12Ft | 3670mm |
| Weight | 187 lb | 85 Kg |
Downhole Mud Motor is widely used in oil field and mine directional well and horizontal well, cluster Wells and vertical Wells, drilling, deflecting, adjusting azimuth, coring, reaming, side tracking and workover treatment, and also applied in some special operations as compound drilling and traversing, etc.
1. Material: High manganese steel
2. Standard: API
3. Features: Big torque, high effective, wide flow rate range, running stable and long using time.
4. The adoption of hollow rotor cooperating with hard alloy jet nozzle of different sizes increases input flow rate and proppant carrying capacity.
5. The bend angle of downhole mud motor can be adjusted on wellhead. Stabilizers of different shapes and sizes can be changed according to different requirements.
Packing: The downhole mud motor is normally packed by wooden boxes, or steel frame.
Delivery: Normally 10-15 days after your down payment.
Departure port: Tianjin port by sea or Beijing airport by air.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
