D36x50 Hdd Drill Rod With S135 Grade FS1 #650 thread In Stock
Glorytek can provide the Hdd Drill Rod for Vemeer Drilling rigs with long life service and good price.
HDD drill rod is made of special pipes for oil drill pipes that meet the API standard, with reliable performance. The unique drill pipe joint is thickened twice and formed, and the transition zone is smooth and smooth, reducing the resistance of mud passing through.

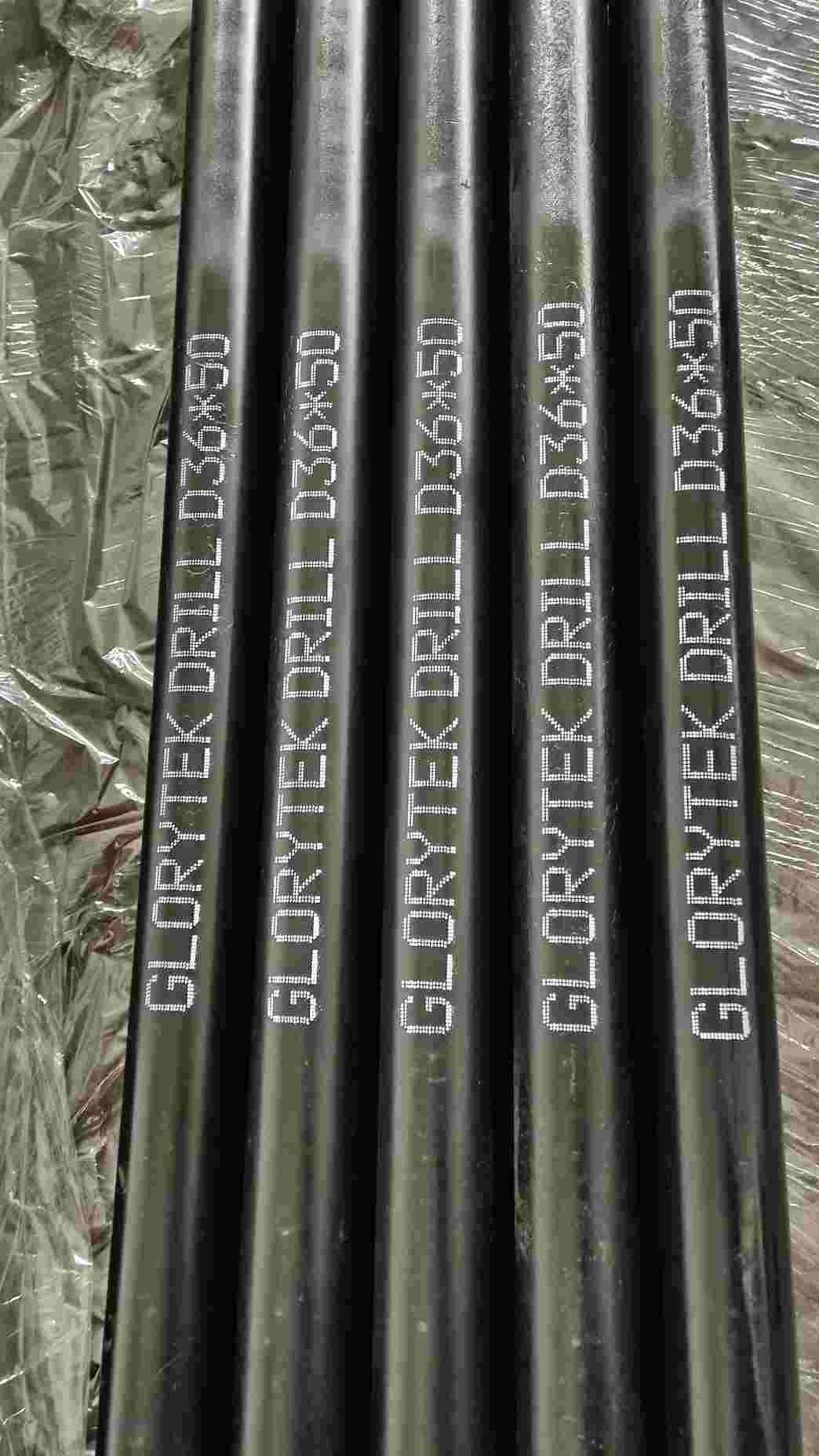

We can supply D36x50 HDD drill rod with 3048mm, FS1#650 thread, material S135.
The surface near the weld is smooth on both the outer and inner diameters. Precision machining and grinding provide a surface finish without stress rise. We use wet magnetic powder and ultrasonic inspection technology to perform 100% inspection on each welding area.
Destructive tests such as tensile, yield, impact and bending tests of welding coverings are carried out for each specification batch and recorded.
| Model of HDD machine | Thread type | OD of the tube (mm) | OD of tool joint (mm) | ID of tool joint (mm) | Wall thickness of tube (mm) | Length (mm) | Grade | Rated Torque (N.M) | Min. Bending Radius (m) |
| D33x44, D36x50, D36x50 Series II | FS1 #650 | 60 | 70 | 22 | 7.5 | 3048 | S135 | 6800 | 33 |
| D36x50, D40x55S3, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 3048 | S135 | 6800 | 44.2 |
| D36x50, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 4572 | S135 | 6800 | 44.2 |
HDD drill rods are used for horizontal directional drilling for construction of municipal engineering, plumbing facilities, sewer pipes, pressure pipes, etc.
Packing: The Water Well Drill Rod is normally packed by steel frame.
Delivery: Normally 15 days after down payment.
Shipping method: by sea
Hot extrusion machine
Adopt T-connector hydraulic for joints forging, to improve the metallo graphical fibrous tissue and impact toughness. So guarantee the comprehensive mechanical properties of the welding joints.
Heat treatment equipment
To use controllable atmosphere heat treatment equipment. Ensure each workpiece sorbite transfermation more fully, greatly enhance the mechanical properties of joints.
Thread machining equipment
To use CNC machine tool to thread finish machining and thread close tolerances.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects, etc.
We own the most advanced pipe production line in China.The technology of heat treatment product line has achieved to the world-class leading levels, we have 200T Friction Welding Machine is the largest model welder, the largest welding capacity can reach drill rod of 200mm OD.
The tube body upsetting technology has achieved the advanced level.Thickening of the anti-extrusion molding of pipe end technology can make the transition zone of internal and external upsetting reach the length to 200mm above.
And the one-piece drilling upsetting technology is more outstanding.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
