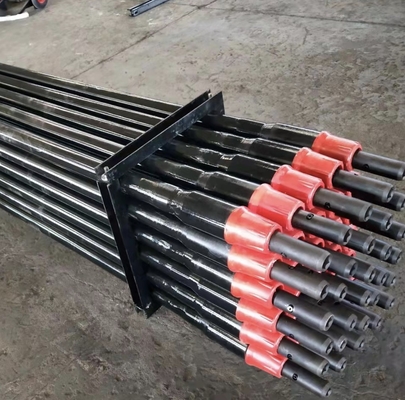

Trenchless Drilling Forged Integral One-Piece HDD Drill Rod for Directional Drills JT2020 JT4020 JT8020
HDD Drill Rod is a tool applicable for transferring torque and tension of drillers in the process of directional drilling construction. Due to the fact that it has to bear torsion, tension, bending, friction and vibration in the process of directional construction, the requirements for processing process are very strict.
After laboratory tests, after laboratory tests, both ends of a pipe are upsetted and proceeded to overall heat treatment, then friction welded. Before finished drill pipes are plated and packaged, a series of tests have to be implemented including hardness, metallurgical structure, physical performances, etc. HDD Drill Rod is widely used in municipal engineering like mining, bridge, tunnel, high way, railway, hydro-power.
With the unaided design capabilities and advanced flow of production, as well as a whole set of high precision equipment, our high-quality products well favored by the majority of customers. We have been striving to develop new and innovative products to meet the changing needs of the drilling industry.
| Modle of HDD machine | Thread type | OD of tube (mm) | OD of the joint (mm) | Wall thickness of tube (mm) | Length (mm) | Grade |
| JT5 | DW1.1 | 28.7 | 47.625 | 7 | 1500 | S135 |
| JT520C | DW1.1 | 28.7 | 47.625 | 7 | 1500 | S135 |
| JT520F | DW1.21 | 28.7 | 44.45 | 7 | 1500 | S135 |
| JT922 | DW1.3 | 42.2 | 51 | 6 | 1828.8 | S135 |
| JT1220 | DW1.47 | 48.26 | 60.3 | 6.5 | 3048 | S135 |
| AT30 | 2.77DS | 57 | 82 | 7 | 2852 | S135 |
| JT520 | DW1.21 | 28.6 | 44.45 | 5 | 1500 | S135 |
| JT820/JT920/JT921/JT921L | DW1.41 | 42.3 | 50.8 | 6 | 2000 | S135 |
| JT920L | DW1.41 | 42.3 | 50.8 | 6 | 3048 | S135 |
| JT1720/JT1720M1 | DW1.69 | 52.4 | 63.5 | 6.5 | 3000 | S135 |
| JT2020/JT20/JT2020M1 | DW1.94 | 60.3 | 66.7 | 7.5 | 3000 | S135 |
| JT2720 | DW1.94 | 60.3 | 70 | 7.5 | 3000 | S135 |
| JT25/JT30 | DW2.11 | 60.3 | 70 | 7.5 | 3000 | S135 |
| JT25/JT2720M1/JT3020M1 | DW2.11 | 60.3 | 76 | 8.5 | 3000 | S135 |
| JT4020 ( old ) | DW2.4 | 73 | 82.5 | 10 | 4500 | S135 |
| JT4020M1 | DW2.59 | 73 | 89 | 10 | 4500 | S135 |
| JT7020/JT8020 | DW3.27 | 89 | 101.6 | 9.35 | 4500 | S135 |

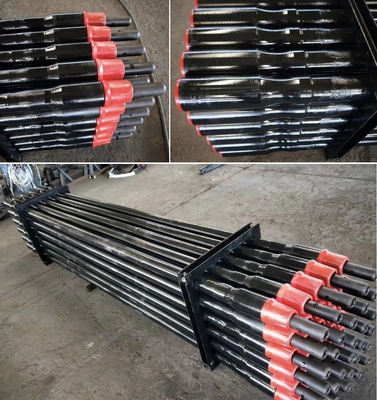

Packing: standard exporting packing.
Delivery: Normally 7 days after your advanced payment.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
FAQ:
Q1. Where is your company?
A1: We located in Beijing, China.
Q2. How do you control quality ?
A2: Strictly full inspection during manafacture process.
Mill Test Certification is supplied with shipment.
Independent Quality Control Department.
Third Party Inspection is available.
Quality Guarantee.
Q3. Can you arrange the shipment ?
A3: Yes, we provide reliable and longterm freight forwrder.
Following is acceptance of delivery term.
EX-WORKS
FOB
CIF
DAP
CFR
OTHERS
Q4. How about the delivery time ?
A4: Roughly 7 days after advanced payment, depends on the quanlity.
