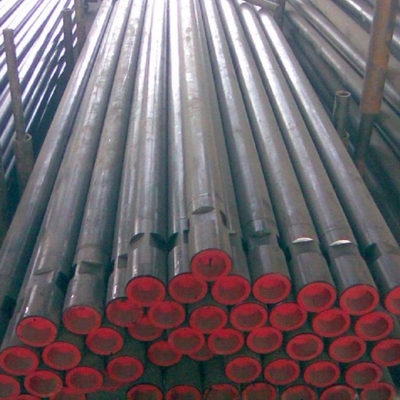

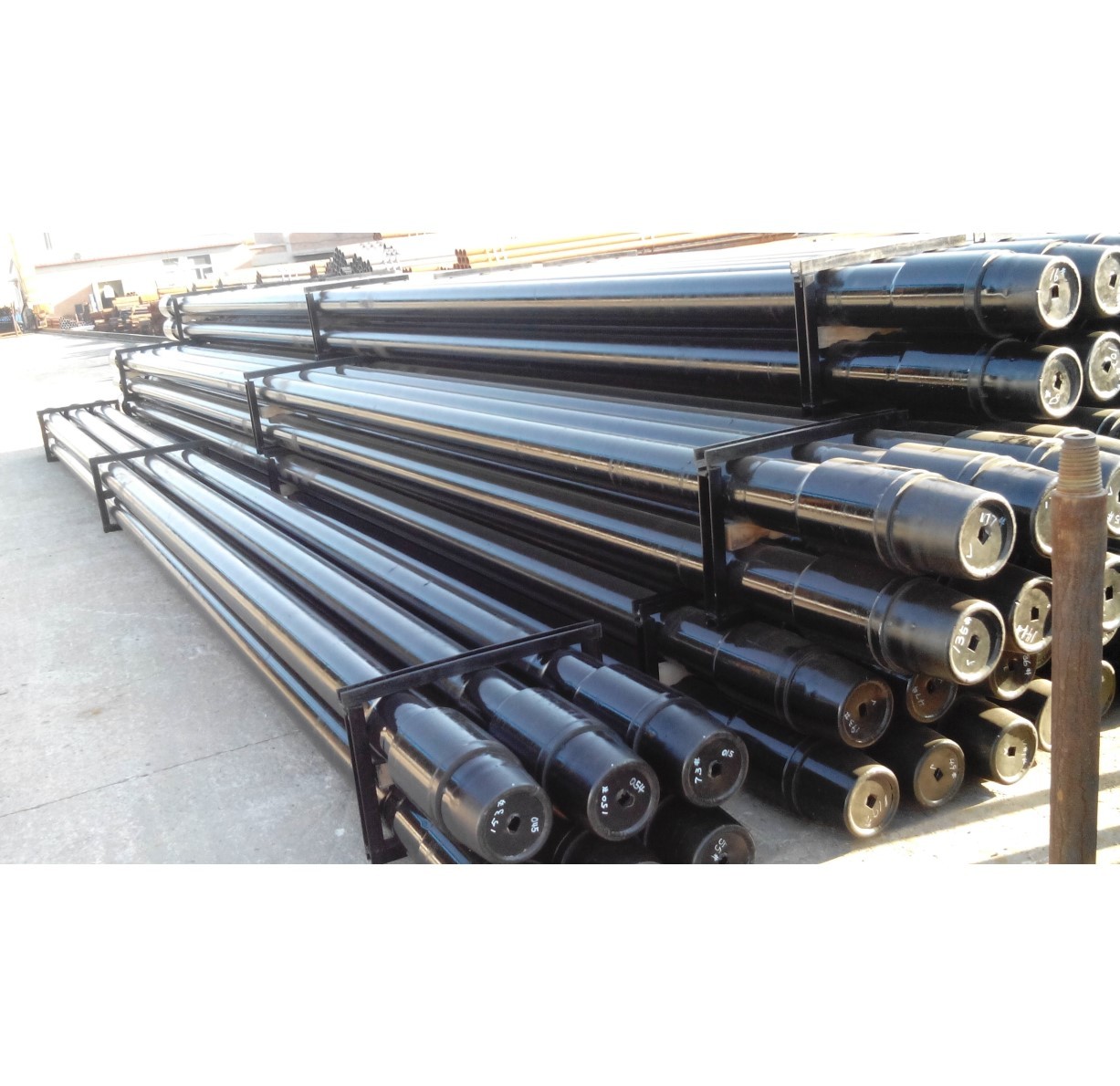

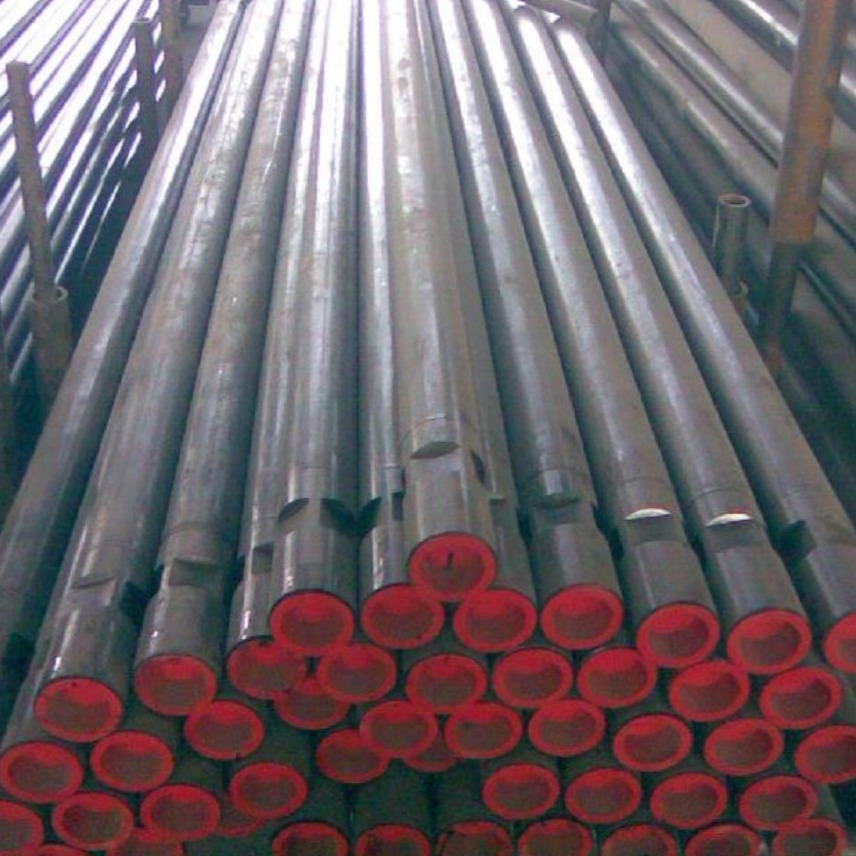

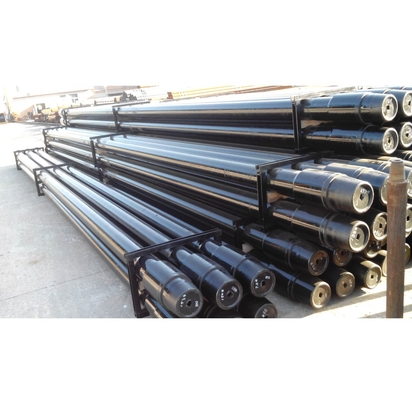

API Standard Friction Welding Non-dig HDD Drill Rod for Directional Drilling
HDD Drill Rod selects petroleum special pipes and pipe ends are thickened and quenched and tempered in accordance with API 5D standard. The steel grade can reach G105 or S135 joint blank forging, controlled atmosphere heat treatment, and conform to API SPEC7-1 standard. heat treatment.
The performance of HDD Drill Rod welds conforms to API SPEC7 standard joint and pipe mechanical performance inspection. HDD Drill Rod material selection-special pipe material for oil drill pipe in line with API standard, reliable performance Unique double thickening forming technology of drill pipe joint, smooth and smooth transition zone, reducing the resistance of mud passing.
Features:
◆Process of End-upsetting can meet the API 5D standard
◆After the heat treatment of thickened pipe, the steel grade can reach G105 or S135.
◆The forging process and heat treatment of the pipe joint can be up to API SPEC7-1 standard.
◆Welding area adopts ausforming process. Performance of welding line can reach the API SPEC 7 standard.
| Drill Rod | Tool Joint | Mechanical Property Tool Joint | |||||||||||||||||||||||||||||
| Size | Grade | Normal | Wall | Upset | Thread | OD | ID | Tensile Yield Load | Torsion Yield | Bend Radius | |||||||||||||||||||||
| Weight | Thickness | Style | |||||||||||||||||||||||||||||
| Lb/ft | mm | In | mm | In | mm | ft-lb | N.M | ft-lb | N.M | ft | m | ||||||||||||||||||||
| 2 7/8 | E | 10.4 | 9.19 | EU | NC23 | 3 1/4 | 82.6 | 1 1/8 | 30 | 1268 | 935 | 11554 | 15665 | 246 | 75 | ||||||||||||||||
| G | EU | NC23 | 3 1/4 | 80.6 | 1 1/8 | 30 | 1775 | 1309 | 16176 | 21932 | 220 | 67 | |||||||||||||||||||
| S | EU | NC26 | 3 3/8 | 85.7 | 1 1/8 | 30 | 2282 | 1683 | 20798 | 28198 | 197 | 60 | |||||||||||||||||||
| 3 1/2 | E | 13.3 | 9.35 | EU | NC31 | 4 1/8 | 105 | 1 1/2 | 38 | 1662 | 1226 | 18551 | 25152 | 295 | 90 | ||||||||||||||||
| G | EU | NC31 | 4 1/8 | 105 | 1 1/2 | 38 | 2327 | 1716 | 25972 | 35213 | 246 | 75 | |||||||||||||||||||
| S | EU | NC38 | 5 | 127 | 2 1/8 | 54 | 2992 | 2207 | 33392 | 45273 | 220 | 67 | |||||||||||||||||||
| 3 1/2 | E | 15.5 | 11.4 | EU | NC38 | 5 | 127 | 2 1/8 | 54 | 1889 | 1393 | 21086 | 25889 | 312 | 95 | ||||||||||||||||
| G | EU | NC38 | 5 | 127 | 2 1/8 | 54 | 2644 | 1950 | 29520 | 40024 | 262 | 80 | |||||||||||||||||||
| S | EU | NC38 | 5 | 127 | 2 1/8 | 54 | 3399 | 2507 | 37954 | 51459 | 236 | 72 | |||||||||||||||||||
| 4 | E | 14 | 8.38 | IU | NC38 | 5 | 127 | 2 1/8 | 54 | 1749 | 1290 | 23288 | 31574 | 459 | 140 | ||||||||||||||||
| G | IU | NC38 | 5 | 127 | 2 1/8 | 54 | 2449 | 1806 | 32603 | 44204 | 394 | 120 | |||||||||||||||||||
| S | IU | NC38 | 5 | 127 | 2 1/8 | 54 | 3149 | 2323 | 41918 | 56833 | 360 | 110 | |||||||||||||||||||
| 4 1/2 | E | 16.6 | 8.56 | IEU | NC38 | 5 | 127 | 2 1/8 | 54 | 1974 | 1456 | 30807 | 41769 | 558 | 170 | ||||||||||||||||
| G | IEU | NC38 | 5 | 127 | 2 1/8 | 54 | 2764 | 2039 | 43130 | 58476 | 492 | 150 | |||||||||||||||||||
| S | IEU | NC40 | 5 1/2 | 139.7 | 2 1/4 | 57 | 3553 | 2621 | 55453 | 75184 | 459 | 140 | |||||||||||||||||||
| 5 | E | 19.5 | 9.19 | IEU | NC50 | 6 5/8 | 168.3 | 3 3/4 | 95.2 | 2457 | 1812 | 41167 | 55815 | 623 | 190 | ||||||||||||||||
| G | IEU | NC50 | 6 5/8 | 168.3 | 3 1/4 | 82.6 | 3440 | 2537 | 57633 | 78140 | 574 | 175 | |||||||||||||||||||
| S | IEU | NC50 | 6 5/8 | 168.3 | 2 3/4 | 69.8 | 4423 | 3262 | 74100 | 100466 | 525 | 160 | |||||||||||||||||||
| 5 1/2 | E | 24.7 | 10.54 | IEU | 5 1/2FH | 7 1/4 | 184.2 | 3 1/2 | 101.6 | 3122 | 2303 | 50710 | 68754 | 689 | 210 | ||||||||||||||||
| G | IEU | 5 1/2FH | 7 1/4 | 184.2 | 3 1/2 | 88.9 | 4372 | 3225 | 70994 | 96255 | 623 | 190 | |||||||||||||||||||
| S | IEU | 5 1/2FH | 7 1/2 | 190.5 | 3 | 76.2 | 5622 | 4146 | 91278 | 123756 | 590 | 180 | |||||||||||||||||||
| 6 5/8 | E | 27.7 | 9.19 | IEU | 6 5/8FH | 8 | 203.2 | 5 | 127 | 3314 | 2444 | 76295 | 103442 | 787 | 240 | ||||||||||||||||
| G | IEU | 6 5/8FH | 8 1/4 | 209.6 | 4 3/4 | 120.7 | 4640 | 3422 | 106813 | 144819 | 722 | 220 | |||||||||||||||||||
| S | IEU | 6 5/8FH | 8 1/2 | 215.9 | 4 1/4 | 7.95 | 5966 | 4400 | 137330 | 186194 | 656 | 200 | |||||||||||||||||||
Packing: standard exporting packing.
Delivery: Normally 10-15 days after your advanced payment.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our Advantages:
1.Production quality and standards meet and exceed the Comprehensive requirements of API5D,API7G,APIQ1. achieve the international first-class.
2.World-class raw materials and advanced heat treatment process,fully reflects the high strength and toughness,especially with high temperature toughness.
3.Sleek long tube thickening transition zone and a solid abrasion-proof increase the service life of drill pipe and the degree of safety.
4.Pipe body material:High quality alloy seamless pipe of R780,E75,X95,G105,S135
5.Top-notch technical team
6.Perfect quality management
7.Advanced and first-class equipment
8.Professional experience of 20 years
9.Comprehensive international standard
