D7*11 D9*13 D24*40 Firestick Directional HDD Drill Rod for Directional Drilling
We offer an extensive selection of HDD Drill rods that are compatible with Vermeer and Ditch Witch equipment. Only the highest quality materials are used in our rods and our cutting-edge manufacturing process is designed to ensure superior HDD drill pipe strength and durability. Get in touch with one of our World HDD drilling specialists to learn more about the type of HDD drill pipe that you need for your horizontal drilling project.
We carry a number of popular sizes in Ditch Witch drill forged-end friction welded pipe. Connect with our horizontal drilling experts to determine the proper part specifications for your order. Best of all, many of our Ditch Witch drill pipe options come with an unconditional guarantee on the inertia weld, irrespective of operating conditions.
Buying the Right Drill Rods
We understand that having the correct information to make an informed decision when buying a HDD drill rod is of the essence. We formed Drill Rod teams to provide our customers with the information needed to choose the right drill rod for your application.
From buying the right drill rods to promoting good practices to extend the life of your drill and common drill rod manufacturing methods, we is here to make sure you have the not only the right rod for your HDD project but the information to get the most out of your investment.
| Model of HDD machine | Thread type | OD of the tube (mm) | OD of tool joint (mm) | ID of tool joint (mm) | Wall thickness of tube (mm) | Length (mm) | Grade |
Rated Torque |
Min. Bending Radius (m) |
| D7x11, D10X15S3, D9x13 | FS1 #200 | 42 | 48 | 19 | 6 | 1829 | S135 | 2040 | 29 |
| D10x14, D10x1 5 | FS1 #200 | 42 | 48 | 19 | 6 | 3048 | S135 | 2040 | 29 |
| D16x20A, D18x22, D20x22 | FS1 #250 | 50 | 54 | 19 | 6 | 3048 | S135 | 2720 | 30 |
| D20x22A, D20x22Series II, D20x22S3 | FS1 #400 | 50 | 57 | 22 | 6.5 | 3048 | S135 | 3536 | 31 |
| D24x40, D24X40A, D24x40Series II, D23x30S3, D24x40S3 | FS1 #600 | 60 | 66.7 | 22 | 7.5 | 3048 | S135 | 5440 | 33 |
| D40x40 | FS1 #600 | 60 | 66.7 | 22 | 7.5 | 4572 | S135 | 5440 | 33 |
| D33x44, D36x50, D36x50 Series II | FS1 #650 | 60 | 70 | 22 | 7.5 | 3048 | S135 | 6800 | 33 |
| D36x50, D40x55S3, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 3048 | S135 | 6800 | 44.2 |
| D36x50, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 4572 | S135 | 6800 | 44.2 |
| D50x100, Uni60x70 | FS1 #900 | 73 | 82.55 | 30 | 10 | 3048 | S135 | 12240 | 51.4 |
| D50x100, D50x100A, D60x90 | FS1 #900 | 73 | 82.55 | 30 | 10 | 4572 | S135 | 12240 | 51.4 |
| D50x100, D80x100 Series II, D60x90 | FS1 #800 | 88.9 | 92 | 38 | 10 | 4572 | S135 | 13600 | 51.4 |
| D100x120 Series II , D130x150, D60x90, D60x90S3, D100x120, D100x140S3 | FS1 #1000 | 89 | 111.5 | 57 | 12.1 | 6096 | S135 | 20400 | 60.2 |
| D33x44, D36x50, D36x50 Series II | FS2 | 60 | 70 | 30 | 7.5 | 3048 | S135 | 6800 | 33 |
| D33x44, D36x50, D36x50 Series II | FS2 | 60 | 70 | 30 | 7.5 | 4572 | S135 | 6800 | 33 |
| D100x120 | FS2 | 88.9 | 104.8 | 57 | 10 | 6096 | S135 | 24480 | 60.2 |
| D36x50DR-lnner rod | FS1 #200 | 42.1 | 48 | 19 | 49 | 3048 | S135 | 2040 | 29 |
| D36x50DR-Outer rod | FS1 #750 | 66.7 | 84 | 52 | 7.1 | 3048 | S135 | 6600 | 40 |

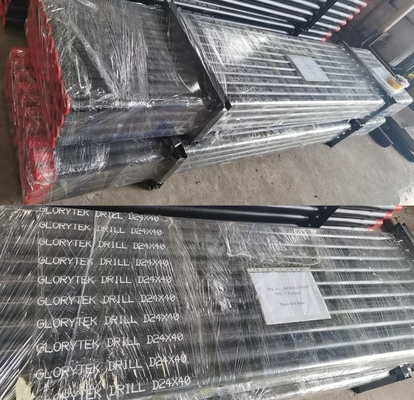

Packing: standard exporting packing.
Delivery: Normally 10-15 days after your advanced payment.
