D7*11 D9*13 D24*40 Firestick Directional HDD Drill Rod for Directional Drilling
High-Quality Drill Rods & Pipes, Knowledgeable Service
We focus on manufacturing high-quality HDD Drill Rods and at the best quality and price. Our respected experts are here to ensure that you get the drill pipe you need to fit your equipment with the right specifications. No downtime, just the right pipe to keep your horizontal directional drilling project on schedule.
Our high-quality products are manufactured to conquer even the most demanding drilling projects. Servicing all major small to mid-size directional drilling rigs, Glorytek is here to make sure you have the right HDD Drill Rod for your HDD project.
| Model of HDD machine | Thread type | OD of the tube (mm) | OD of tool joint (mm) | ID of tool joint (mm) | Wall thickness of tube (mm) | Length (mm) | Grade |
Rated Torque |
Min. Bending Radius (m) |
| D7x11, D10X15S3, D9x13 | FS1 #200 | 42 | 48 | 19 | 6 | 1829 | S135 | 2040 | 29 |
| D10x14, D10x1 5 | FS1 #200 | 42 | 48 | 19 | 6 | 3048 | S135 | 2040 | 29 |
| D16x20A, D18x22, D20x22 | FS1 #250 | 50 | 54 | 19 | 6 | 3048 | S135 | 2720 | 30 |
| D20x22A, D20x22Series II, D20x22S3 | FS1 #400 | 50 | 57 | 22 | 6.5 | 3048 | S135 | 3536 | 31 |
| D24x40, D24X40A, D24x40Series II, D23x30S3, D24x40S3 | FS1 #600 | 60 | 66.7 | 22 | 7.5 | 3048 | S135 | 5440 | 33 |
| D40x40 | FS1 #600 | 60 | 66.7 | 22 | 7.5 | 4572 | S135 | 5440 | 33 |
| D33x44, D36x50, D36x50 Series II | FS1 #650 | 60 | 70 | 22 | 7.5 | 3048 | S135 | 6800 | 33 |
| D36x50, D40x55S3, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 3048 | S135 | 6800 | 44.2 |
| D36x50, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 4572 | S135 | 6800 | 44.2 |
| D50x100, Uni60x70 | FS1 #900 | 73 | 82.55 | 30 | 10 | 3048 | S135 | 12240 | 51.4 |
| D50x100, D50x100A, D60x90 | FS1 #900 | 73 | 82.55 | 30 | 10 | 4572 | S135 | 12240 | 51.4 |
| D50x100, D80x100 Series II, D60x90 | FS1 #800 | 88.9 | 92 | 38 | 10 | 4572 | S135 | 13600 | 51.4 |
| D100x120 Series II , D130x150, D60x90, D60x90S3, D100x120, D100x140S3 | FS1 #1000 | 89 | 111.5 | 57 | 12.1 | 6096 | S135 | 20400 | 60.2 |
| D33x44, D36x50, D36x50 Series II | FS2 | 60 | 70 | 30 | 7.5 | 3048 | S135 | 6800 | 33 |
| D33x44, D36x50, D36x50 Series II | FS2 | 60 | 70 | 30 | 7.5 | 4572 | S135 | 6800 | 33 |
| D100x120 | FS2 | 88.9 | 104.8 | 57 | 10 | 6096 | S135 | 24480 | 60.2 |
| D36x50DR-lnner rod | FS1 #200 | 42.1 | 48 | 19 | 49 | 3048 | S135 | 2040 | 29 |
| D36x50DR-Outer rod | FS1 #750 | 66.7 | 84 | 52 | 7.1 | 3048 | S135 | 6600 | 40 |

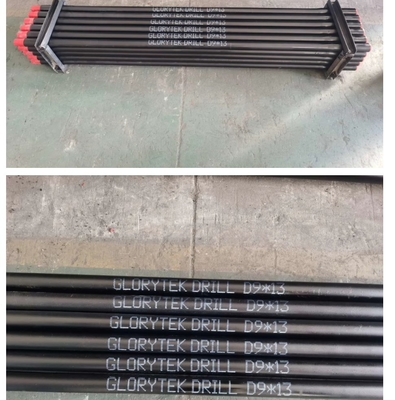

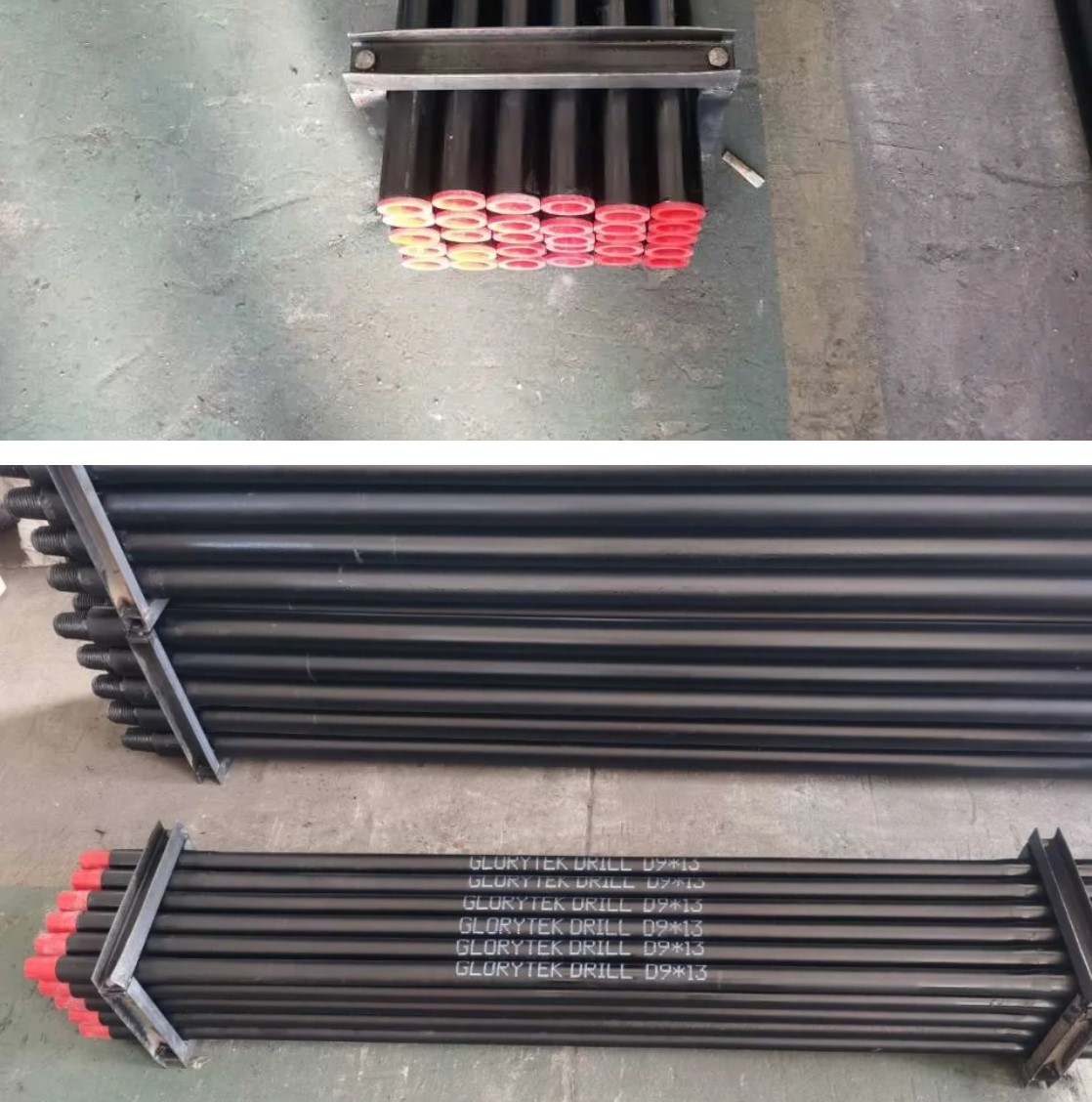

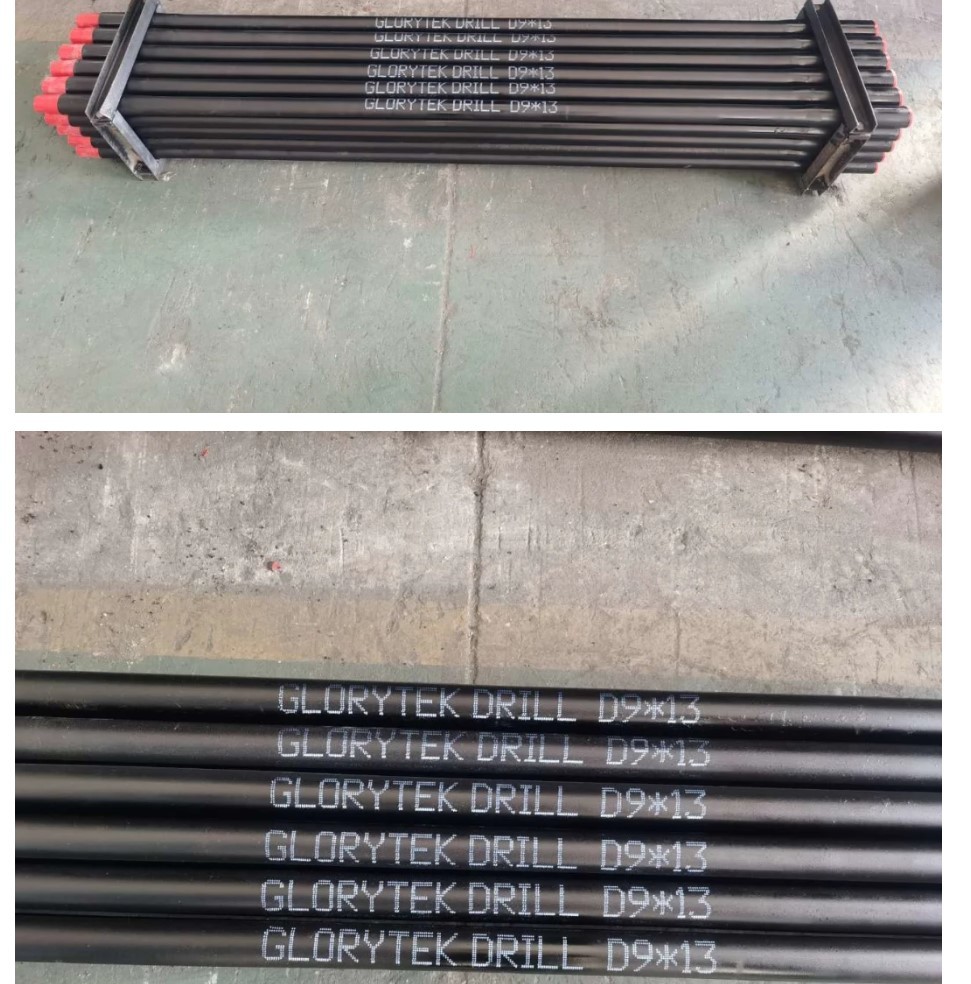

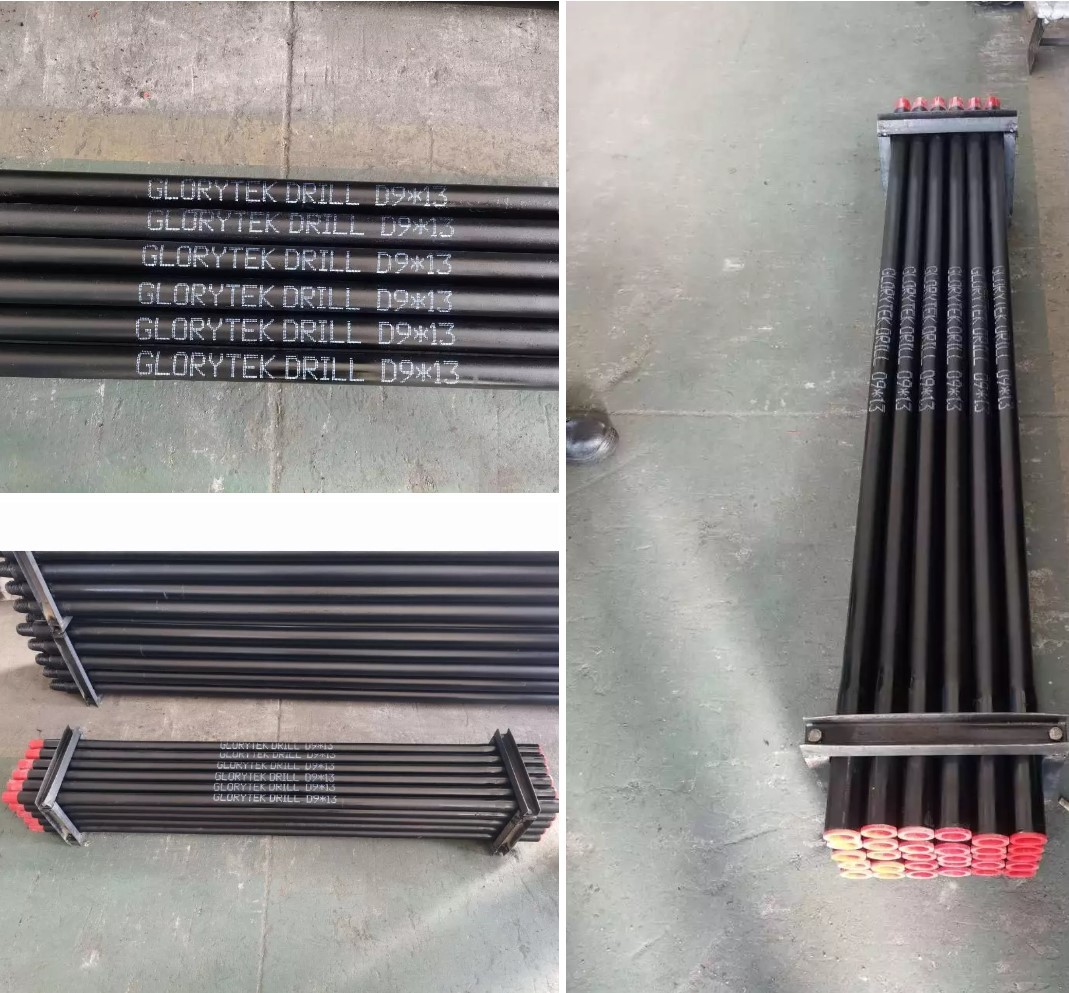

Packing: standard exporting packing.
Delivery: Normally 10-15 days after your advanced payment.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
