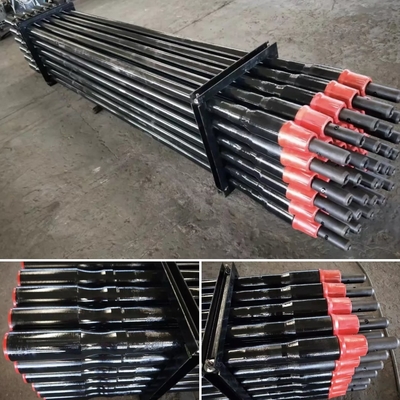

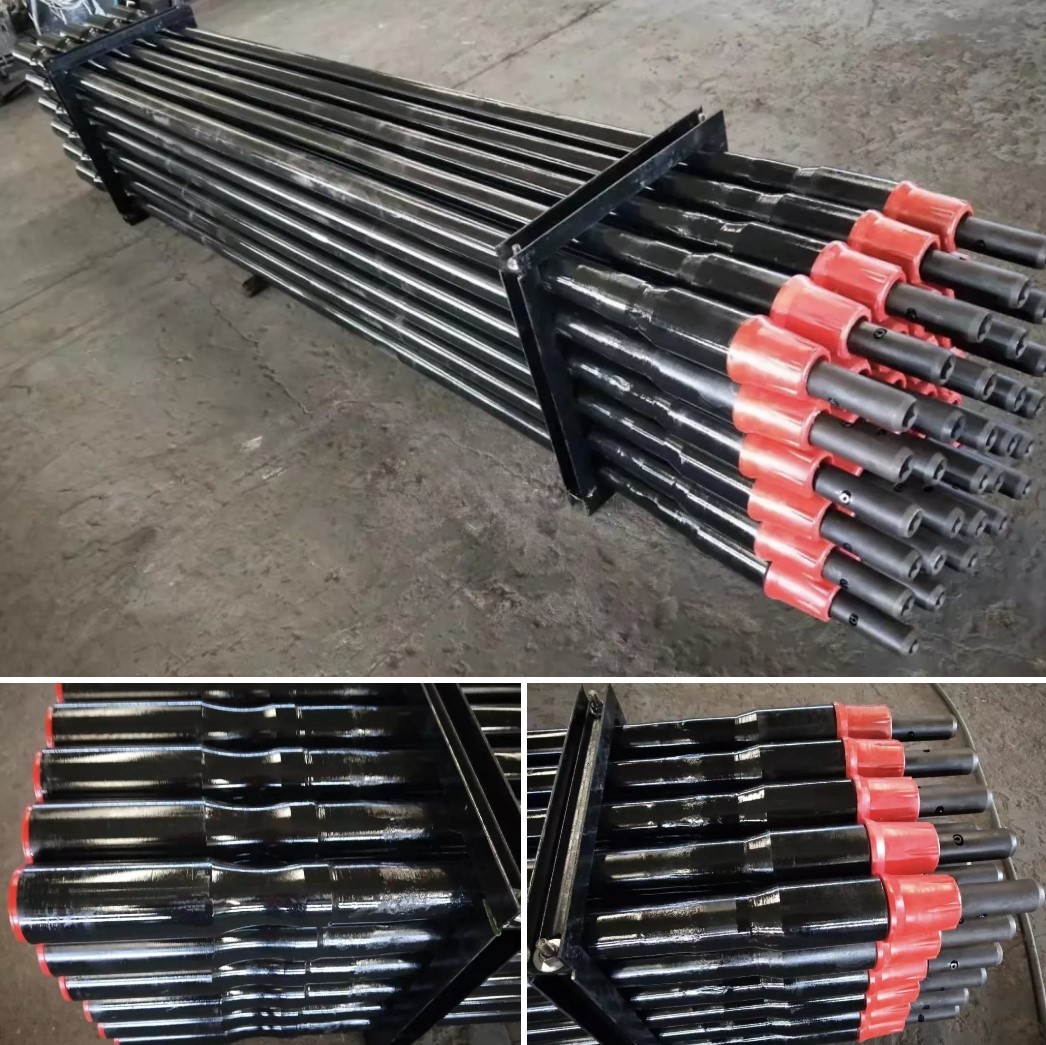

JT3020AT Trenchless Drilling Forged Integral HDD Drill Rod for Directional Drilling
Our HDD drill rods are satisfied with S135 steel grade. Heat treatment with multi-point temperature measurement to guarantee perfect match between strength and toughness.
We use surface nitrogening on the whole drill rod, except longer the working life of thread,but also extend the service time for the body part. Quality controlled on each step, from raw material picking to final packaging. Available both of Forged and Friction welding drill rod.
Our drill rod can be compatible with Vermeer, Case, Ditch Witch and other Chinese models. We also highly welcome for customized model, please do not hesitated cto contact us.
Features:
1. Material selection-with API standard and reliable performance.

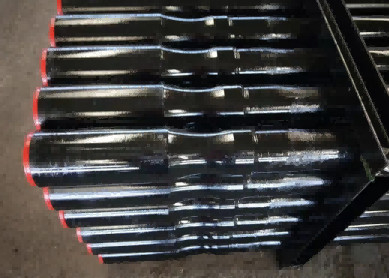

2. The twice thickening molding technology of pipe joint makes the transition zone very stable and smooth which tremendously reduce the resistance of mud through the pipe.
3. With National initiative integral drill rod and intermediate-frequency heat treatment technology make this kind of product have the higher Mechanical Properties than the similar products.
4. Be treated by liquid nitrogen treatment process, the joint thread is deeper than the traditional processing technic which greatly prolong the service life of products.
| Modle of HDD machine | Thread type | OD of tube (mm) | OD of the joint (mm) | Wall thickness of tube (mm) | Length (mm) | Grade |
| JT5 | DW1.1 | 28.7 | 47.625 | 7 | 1500 | S135 |
| JT520C | DW1.1 | 28.7 | 47.625 | 7 | 1500 | S135 |
| JT520F | DW1.21 | 28.7 | 44.45 | 7 | 1500 | S135 |
| JT922 | DW1.3 | 42.2 | 51 | 6 | 1828.8 | S135 |
| JT1220 | DW1.47 | 48.26 | 60.3 | 6.5 | 3048 | S135 |
| AT30 | 2.77DS | 57 | 82 | 7 | 2852 | S135 |
| JT520 | DW1.21 | 28.6 | 44.45 | 5 | 1500 | S135 |
| JT820/JT920/JT921/JT921L | DW1.41 | 42.3 | 50.8 | 6 | 2000 | S135 |
| JT920L | DW1.41 | 42.3 | 50.8 | 6 | 3048 | S135 |
| JT1720/JT1720M1 | DW1.69 | 52.4 | 63.5 | 6.5 | 3000 | S135 |
| JT2020/JT20/JT2020M1 | DW1.94 | 60.3 | 66.7 | 7.5 | 3000 | S135 |
| JT2720 | DW1.94 | 60.3 | 70 | 7.5 | 3000 | S135 |
| JT25/JT30 | DW2.11 | 60.3 | 70 | 7.5 | 3000 | S135 |
| JT25/JT2720M1/JT3020M1 | DW2.11 | 60.3 | 76 | 8.5 | 3000 | S135 |
| JT4020 ( old ) | DW2.4 | 73 | 82.5 | 10 | 4500 | S135 |
| JT4020M1 | DW2.59 | 73 | 89 | 10 | 4500 | S135 |
| JT7020/JT8020 | DW3.27 | 89 | 101.6 | 9.35 | 4500 | S135 |
Packing: standard exporting packing.
Delivery: Normally 10-15 days after your advanced payment.
