5 Stages Downhole Mud Motor with 5.0 MPa Pressure for Horizontal Directional Drilling in Oil and Mining Fields

1set
MOQ
Negotiable
Price
5 Stages Downhole Mud Motor with 5.0 MPa Pressure for Horizontal Directional Drilling in Oil and Mining Fields
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Downhole Mud Motor Drilling Mud Motor For Horizontal Directional Drilling
Keyword: Drilling Mud Motor For Horizontal Directional Drilling
Model: 5LZ127×7.0V
Lobe: 5:6
Stages: 5
Pressure: 5.0 MPa
Highlight:

5 Stages Downhole Mud Motor

,

5.0 MPa Pressure Drilling Mud Motor

,

Horizontal Directional Drilling Motor
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Model Number: 5LZ127
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10 days
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 100sets/month
Product Description
5LZ127*7.0V Downhole Mud Motor for Horizontal Directional Drilling
The 5LZ127*7.0V Downhole Mud Motor is a versatile positive displacement motor designed for compound drilling, traversing, and workover treatment in oil and mining fields. Drilling fluid from the mud pump enters the motor via the bypass valve, creating a pressure differential between the motor inlet and outlet. This pressure drop drives the motor rotor to rotate, transmitting torque and rotary speed to the drill bit through the universal shaft and transmission shaft.
Technical Specifications
Parameter Specification
Downhole Motor Type 5LZ127*7.0V
Recommended Hole Size 149.2-200mm (5 7/8–7 7/8)
Input Flow Rate 9-13-16 L/s
Pressure 5.0 MPa
Speed of the Bit 109-157-193 r/min
Working Torque 3200 N.m
Delay Dynamic Torque 4800 N.m
Output Power 36-64 Kw
Recommend Drilling Weight 50 KN
Max. Drilling Weight 70 KN
Thread 3 1/2 REG or Customized (Upper & Bottom)
Applications
This downhole mud motor is widely used in oil field and mining operations for directional wells, horizontal wells, cluster wells, and vertical wells. Applications include drilling, deflecting, adjusting azimuth, coring, reaming, side tracking, workover treatment, and specialized operations such as compound drilling and traversing.
Key Features
  • Torque generated is exclusively used to drive the drill bit, reducing drill pipe wear
  • Special BHA with large build-up rate and steering BHA for continuous control available
  • Output torque has linear relationship with pressure drop from drilling fluid within operational range
  • Hollow rotor design with hard alloy jet nozzles increases flow rate and proppant carrying capacity
  • Bend angle adjustable at wellhead with customizable stabilizers for different requirements

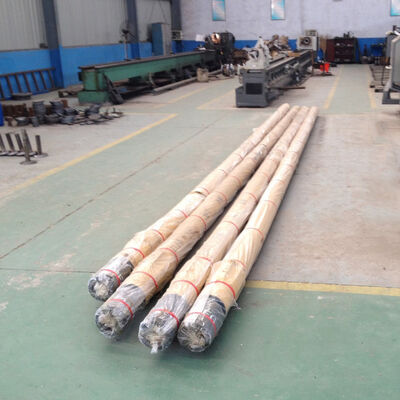

Packaging & Delivery
Packaging: Wooden boxes or steel frame
Delivery: 10-15 days after down payment
Departure Port: Tianjin port by sea or Beijing airport by air

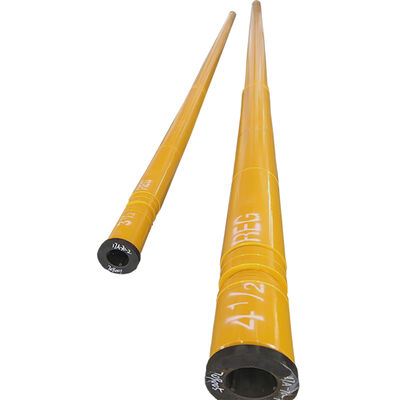

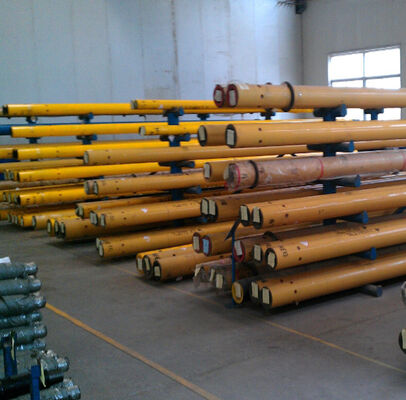

Product Images
5 Stages Downhole Mud Motor with 5.0 MPa Pressure for Horizontal Directional Drilling in Oil and Mining Fields 0 5 Stages Downhole Mud Motor with 5.0 MPa Pressure for Horizontal Directional Drilling in Oil and Mining Fields 1 5 Stages Downhole Mud Motor with 5.0 MPa Pressure for Horizontal Directional Drilling in Oil and Mining Fields 2
Manufacturer Profile
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete all assigned projects according to client requirements.
Frequently Asked Questions
Are you a factory or a trading company?
We are an integrated corporation specialized in manufacturing and exporting.
What is your payment terms?
We accept T/T and L/C.
What is your MOQ?
No minimum order quantity requirement for testing and trial orders.
Tag:

Hydraulic Positive Displacement Mud Motor

Oil Field Downhole Mud Motor

Gas Hydraulic Downhole Drilling Motors
