Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 280 Meter Depth

1set
MOQ
Negotiable
Price
Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 280 Meter Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GLF500 Top Hammer Full Hydraulic Reverse Circulation RC Drill Rig
Keyword: Reverse Circulation RC Drill Rig
Depth: 280m
Hole Dia.: 110~305mm
Dimension: 6.3×2.1×2.8 M
Weight: 8.5t
Highlight:

Hydraulic RC Drilling Equipment

,

Hammer RC Drilling Equipment

,

Top Hammer Drill Rig 280 Meter

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: GLF500
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20sets/month
Product Description

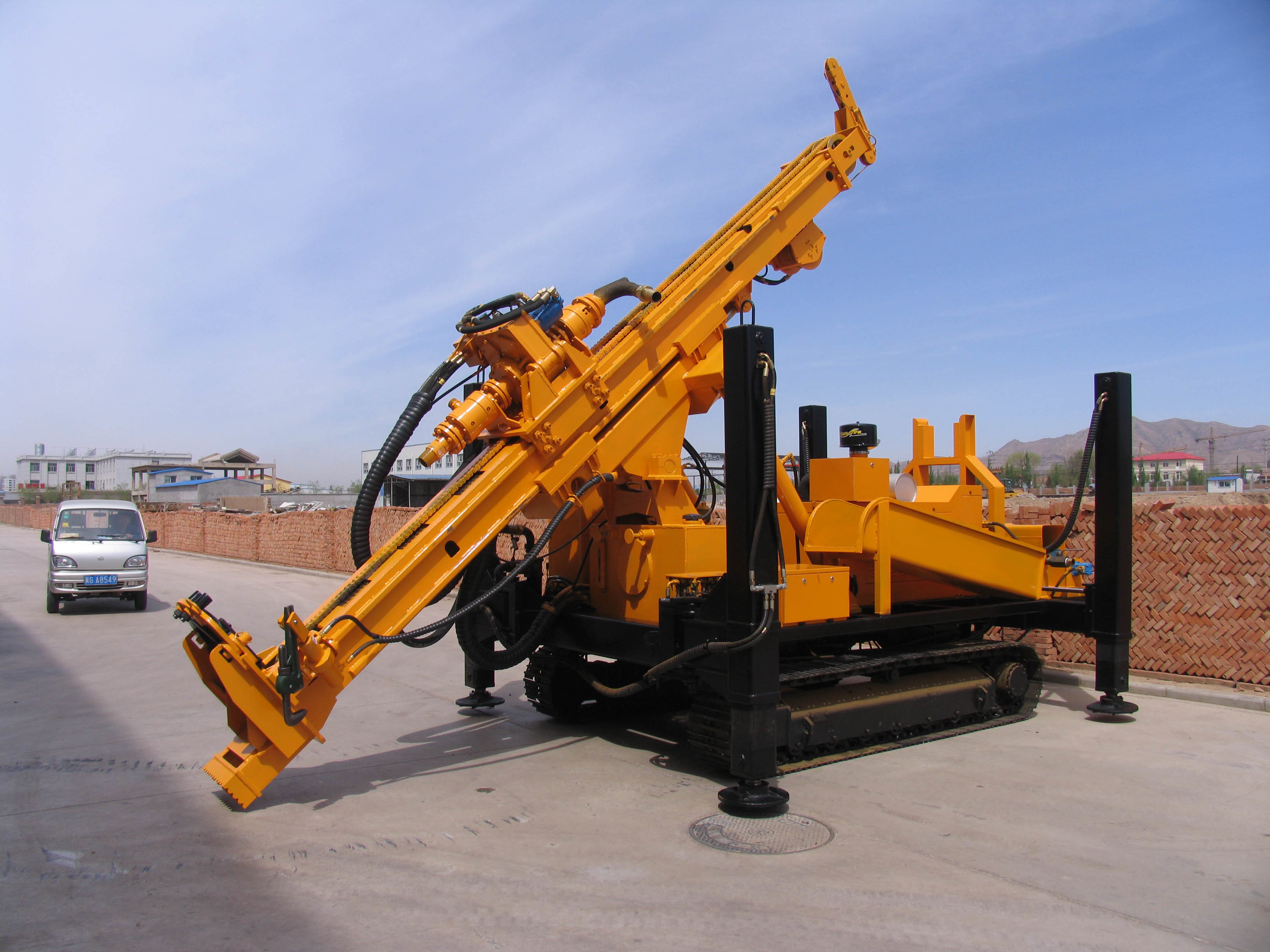

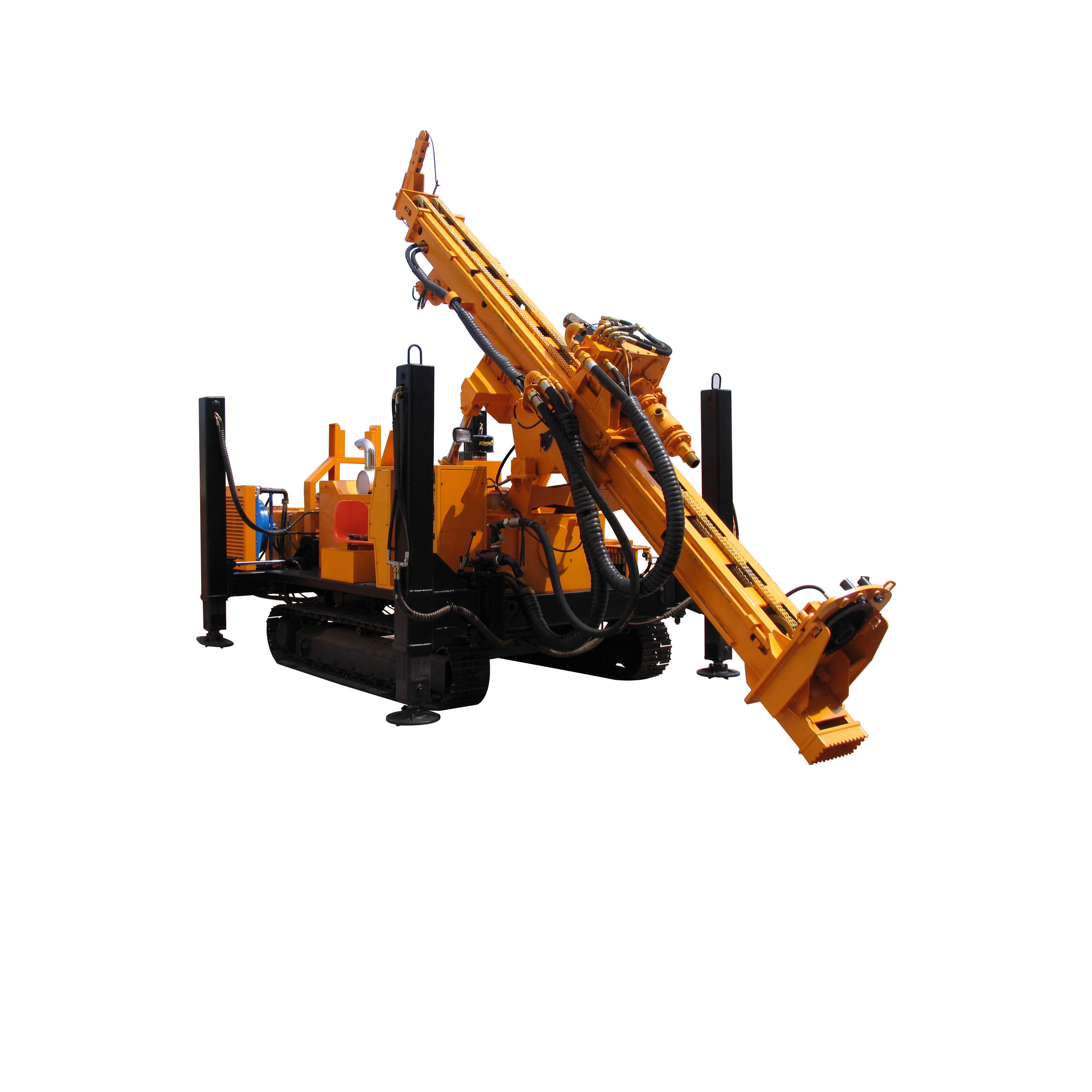

GLF500 Top Hammer Full Hydraulic Reverse Circulation RC Drill Rig



Description

Diesel engine-driving hydraulic system. Walk, Travel, rotate, feed, hoist, land, lift, compensate, unload and so on are all run by hydraulic components.

During rock drilling operation, you can use reverse hammer that air compressor will provide wind to drive and slag.

In operation, you can use reverse hammer and double ply drill rod (intake air through the gap of the double ply, and slag through the inner tube) to make reverse circulation operation.

Clients can also use common drill rod to make positive circulation operation.

Working unit consists of feed system, slide guide (mast), top-driving rotary head, Intake box, slide plate, compensation mechanism, centering apparatus, unloading system and hoisting system, etc.

Axial compression, forward speed and rotation speed is adjustable.



Technical Parameter



Model: GLF500
Max. drill depth: 280m
Drill diameter: 110~305mm
Working air pressure: 1.05~3 MPa
Air consumption: 16-42 m³/min
Drill rod length: 3m
Drill rod diameter: Φ89/Φ108/Φ127mm
Axial pressure:   5t
Lifting force:   12t
Slow lifting speed: 2.9m/min
Slow feed speed: 4.2m/min
Fast lifting speed: 14.5m/min
Fast feed speed: 21m/min
Rotation torque: 4000-5700Nm; 2820-3300Nm
Rotation speed: 0-120r/min;0-150r/min
Penetration rate: 10-25m/h
Walking speed:  2.5Km/h
Grade ability: 21°
Weight: 8.5t
Whole dimension: 6.3×2.1×2.8 m
Application formation: Unconsolidated layer or bedding rock
Drill method: reverse hammer
Hammer: Intermediate of high air pressure series





Certificate



Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 280 Meter Depth 0




Customer Visting

Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 280 Meter Depth 1

Company Profile

Full Hydraulic RC Drilling Equipment , Top Hammer Drill Rig 280 Meter Depth 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
