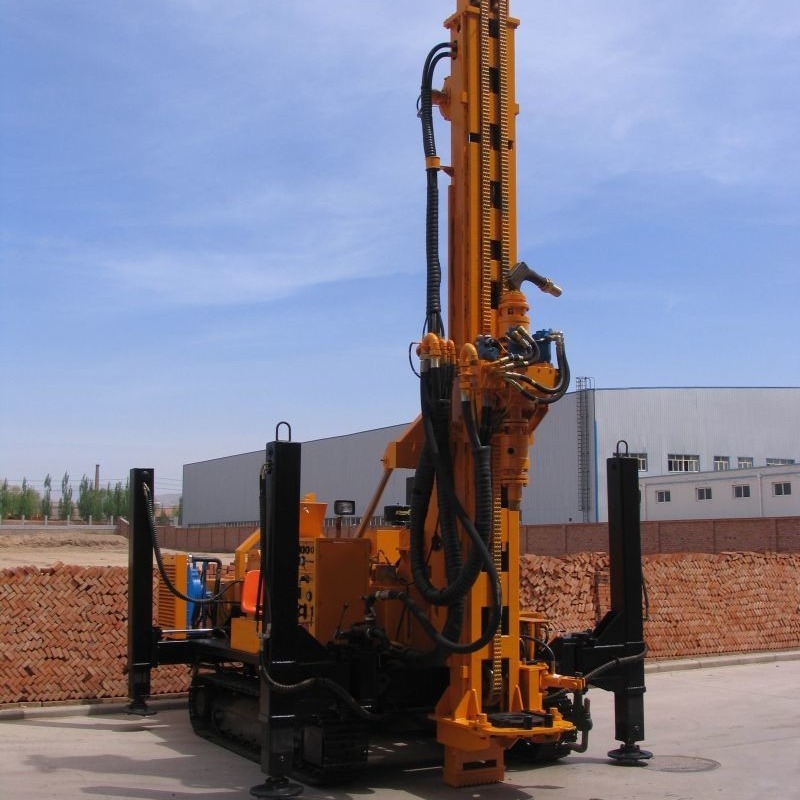

6 Inch Reverse Circulation Large Diameter Irrigation Well Drilling Equipment Rc Drill Rig
The crushing mechanism of the reverse circulation breaking into the rock process is to use the RC drill bit to impact the rock with a high frequency to break the rock, and then use the reverse circulation slag discharge method to discharge the broken cuttings out of the hole in time. The impact drill is balanced by two steel ropes, so it is very convenient to start or lower the drill, which greatly shortens the auxiliary time.
GLF500 RC drilling rig can easily deal with the drilling work of soil, sand, clay, and pebble layers, and has been used in projects such as dewatering wells, farmland irrigation wells, and engineering pile holes.
The engineering track and hydraulic chassis are easy to move and are more suitable for plains, plateaus and other landforms. The chassis has 4 outriggers and has good stability.
Plenty of driving space is left on the crawler chassis, making it more comfortable to operate machinery.
| Model: | GLF500 |
| Max. drill depth: | 280m |
| Drill diameter: | 110～305mm |
| Working air pressure: | 1.05～3 MPa |
| Air consumption: | 16-42 m³/min |
| Drill rod length: | 3m |
| Drill rod diameter: | Φ89/Φ108/Φ127mm |
| Grade ability: | 21° |
| Weight: | 8.5t |
| Whole dimension: | 6.3×2.1×2.8 m |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
