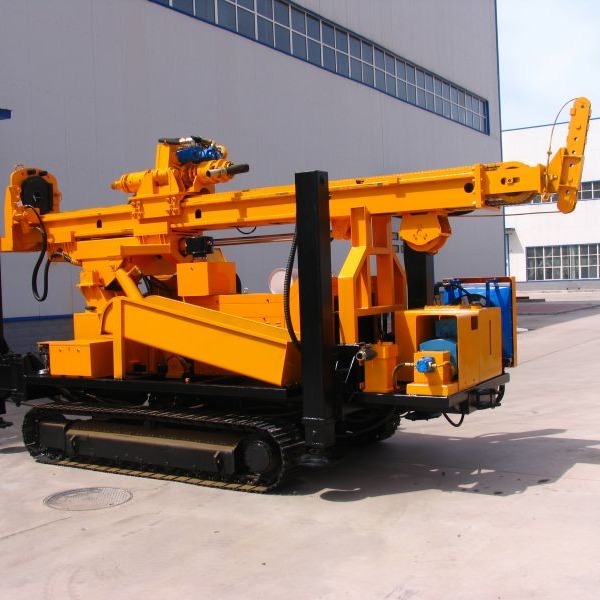

Dth RC Pneumatic Portable Borehole 280 Meters Depth RC Drill Rig
Description
The cylinder plate chain propulsion method is reliable and durable.
The roller slide is durable and wear-resistant.
The thrust axis pressure, thrust speed and rotation speed are adjustable.
The small hoist has a lifting force of 1.5 tons, and a steel wire rope is 60 meters long. It can lift drilling tools, tools, etc., or assist in loading and unloading drill pipes.
The walking is a crawler type self-propelled structure, which is easy to move.
It adopts crawler type chassis. Steel track (inlaid with rubber blocks are optional, which is convenient for walking on urban roads).
It is equipped with four high outriggers as standard. When it is transported over long distances and is loaded by a car, it does not need to be lifted, and it can be directly mounted on the car, which is convenient for transportation.
Technical Parameter
| Model: | GLF500 |
| Max. drill depth: | 280m |
| Drill diameter: | 110～305mm |
| Working air pressure: | 1.05～3 MPa |
| Air consumption: | 16-42 m³/min |
| Drill rod length: | 3m |
| Drill rod diameter: | Φ89/Φ108/Φ127mm |
| Axial pressure: | 5t |
| Lifting force: | 12t |
| Fast feed speed: | 21m/min |
| Rotation torque: | 4000-5700Nm; 2820-3300Nm |
| Rotation speed: | 0-120r/min；0-150r/min |
| Penetration rate: | 10-25m/h |
| Walking speed: | 2.5Km/h |
| Grade ability: | 21° |
| Weight: | 8.5t |
| Whole dimension: | 6.3×2.1×2.8 m |
| Application formation: | Unconsolidated layer or bedding rock |
| Drill method: | reverse hammer |
Certificate
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
