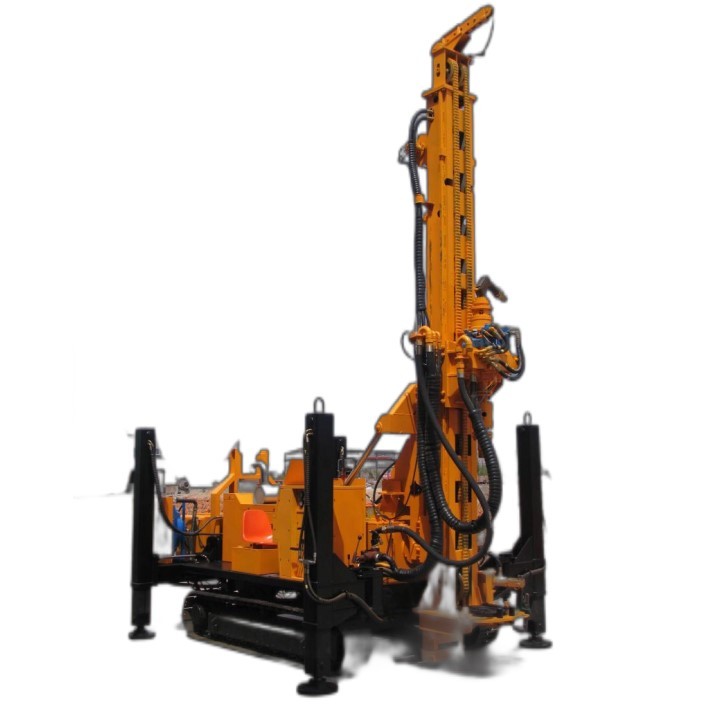

High Efficiency Diesel Reverse Circulation Water Well Rc Drill Rig
| Model | GLF600 |
| Max. drill depth | 400m |
| Drill diameter | 105-400mm |
| Working air pressure | 1.05-3.45 MPa |
| Air consumption | 16-55 m³/min |
| Drill rod length | 3m |
| Drill rod diameter | Φ102,108,127mm |
| Axial pressure | 7t |
| Lifting force | 28t |
| Slow lifting speed | 5m/min |
| Slow feed speed | 0.5-7m/min |
| Fast lifting speed | 29m/min |
| Fast feed speed | 48m/min |
| Rotation torque | 10000/5000Nm |
| Rotation speed | 0-75r/min;0-150r/min |
| Feeding efficiency | 10-25m/h |
| Walking speed | 2.5Km/h |
| Grade ability | 21° |
| Weight | 12.5t |
| Whole dimension | 6.8×2.1×2.9m |
| Application formation | Loose layer and bedrock |
| Drill method | Reverse circulation down-the-hole hammer drilling |
| Hammer | Middle pressure and high air pressure series |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
