Roatary RC Drill Rig Down The Hole For 400M Mining Multifunctional

1set
MOQ
Negotiable
Price
Roatary RC Drill Rig Down The Hole For 400M Mining Multifunctional
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 400M Multi-Functional Roatary Drilling Rc Drill Rig For Mining
Keyword: Rc Drill Rig For Mining
Depth: 400m
Working Air Pressure: 6.8×2.1×2.9m
Working Air Pressure 1.05-3.45 MPa Air Consumption: 16-55 M³/min
Highlight:

RC Drill Rig Down The Hole

,

Mining RC Drill Rig

,

400M Mining Drill Rig

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: GLF600
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20sets/month
Product Description

400M Multi-Functional Roatary Drilling Rc Drill Rig For Mining

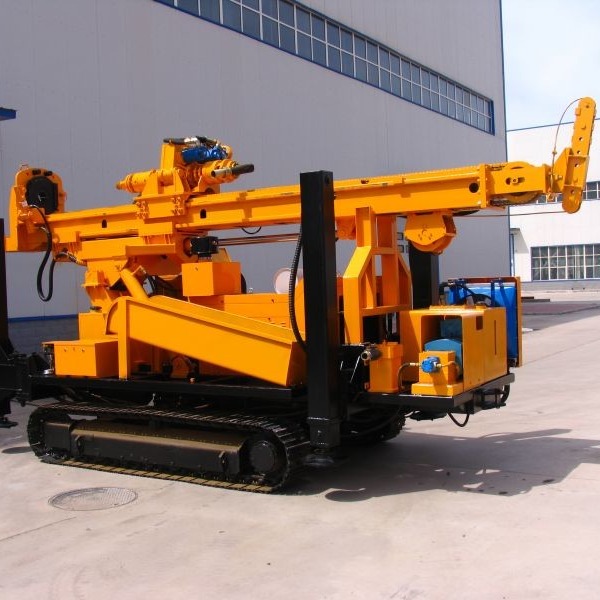

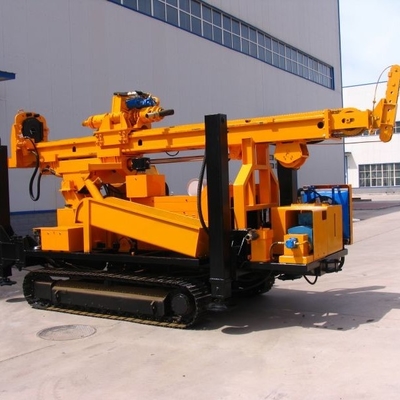

Description of GLF600 RC Drill Rig



GLF600 Reverse Circulation Drilling Rig is specially designed for air circulation down-the-hole (DTH) water well drilling, it is also good for DTH RC drilling in surface mining. It is ideal equipment for water well drilling and gold, copper etc mining exploration.

The rig equips with hydraulic system, hydraulic tower, hydraulic supporting legs.

Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.

The drill tower and drilling process used by the reverse circulation drilling rig are large, the torsion resistance is large, the structure is simple, the maintenance is convenient, the handling is convenient, the orifice operation is relatively convenient, and the large-top drilling can be constructed.

All the mechanical systems of traveling, rotating, driving, feeding, rod loosing, lifting units and hydraulic legs, winches all hydraulically controlled/driven. This allows the drilling rig works with high efficiency, ease and conveniences.



Technical Parameter





Model GLF600
Max. drill depth 400m
Drill diameter 105-400mm
Working air pressure 1.05-3.45 MPa
Air consumption 16-55 m³/min
Drill rod length 3m
Drill rod diameter Φ102,108,127mm
Fast lifting speed 29m/min
Fast feed speed 48m/min
Rotation torque 10000/5000Nm
Grade ability 21°
Weight 12.5t
Whole dimension 6.8×2.1×2.9m
Application formation Loose layer and bedrock
Drill method Reverse circulation down-the-hole hammer drilling
Hammer Middle pressure and high air pressure series





Certificate



Roatary RC Drill Rig Down The Hole For 400M Mining Multifunctional 0



Customer Visting

Roatary RC Drill Rig Down The Hole For 400M Mining Multifunctional 1

Company Profile

Roatary RC Drill Rig Down The Hole For 400M Mining Multifunctional 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ


Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.



Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
