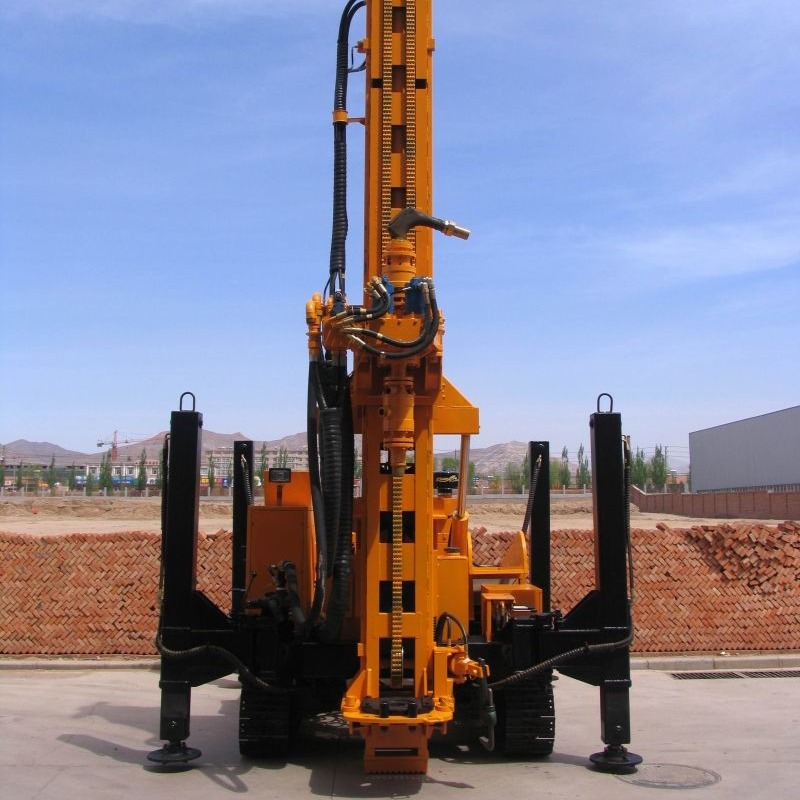

Air Percussion Rc Water Drilling Crawler RC Drill Rig With Vertical Mast
Description
When constructing the foundation, the selection of equipment is very important, and different construction techniques are used for different strata. For layer construction, rotary drilling is used, which has the advantages of low cost, good hole-forming quality, light weight of pile driver, and convenient relocation. For construction, it is more suitable to use impact reverse circulation drilling, because it can speed up the construction period, improve the drilling efficiency, and ensure the quality of the project.
GLF500 is mainly used in piling, dewatering wells, farmland irrigation wells, etc. It is easy to drill 100 meters, and large diameters are more labor-saving.
The engineering track and hydraulic chassis are easy to move and are more suitable for plains, plateaus and other landforms. The chassis has 4 outriggers and has good stability.
Technical Parameter
| Model: | GLF500 |
| Max. drill depth: | 280m |
| Drill diameter: | 110～305mm |
| Working air pressure: | 1.05～3 MPa |
| Air consumption: | 16-42 m³/min |
| Drill rod length: | 3m |
| Drill rod diameter: | Φ89/Φ108/Φ127mm |
| Axial pressure: | 5t |
| Rotation torque: | 4000-5700Nm; 2820-3300Nm |
| Rotation speed: | 0-120r/min；0-150r/min |
| Grade ability: | 21° |
| Weight: | 8.5t |
| Whole dimension: | 6.3×2.1×2.8 m |
| Application formation: | Unconsolidated layer or bedding rock |
| Drill method: | reverse hammer |
Certificate
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
