Reverse Circulation Drilling Bore Hole Hard Rock Rc Drill Rig

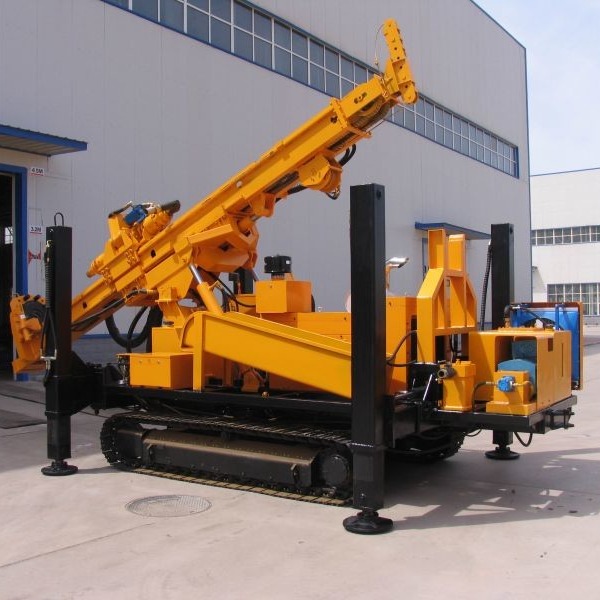

GLF500 drilling rig is mounted on a crawler chassis, driven by full hydraulic system, power head type drilling rig, which is used to drill vertical or inclined hole.
Rig with full hydraulic transmission and control operates easily and flexibly. It can show smooth operation and reliable.
GLF500 reverse circulation drilling rig is suitable for complex foundation engineering construction such as clay layer, cobblestone, cemented cobblestone and rock embedded. It is widely used in bridge bored piles,underground continuous wall foundation engineering and farmland water conservancy construction.
The power head adopts a three-ring deceleration mechanism, which is a fairly mature product. The reducer with large center hole has high load overload capacity, compact structure, low noise and long service life. It is the most ideal power unit for domestic drilling rigs at present.
| Model: | GLF500 |
| Max. drill depth: | 280m |
| Drill diameter: | 110～305mm |
| Working air pressure: | 1.05～3 MPa |
| Air consumption: | 16-42 m³/min |
| Drill rod length: | 3m |
| Drill rod diameter: | Φ89/Φ108/Φ127mm |
| Grade ability: | 21° |
| Weight: | 8.5t |
| Whole dimension: | 6.3×2.1×2.8 m |
| Application formation: | Unconsolidated layer or bedding rock |
| Drill method: | reverse hammer |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
