400M Borehole Drilling Rig , Water Hole Drilling Machine 92KW Diesel Powered

1
MOQ
Negotiable
Price
400M Borehole Drilling Rig , Water Hole Drilling Machine 92KW Diesel Powered
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL400S 400M Steel Crawler Water Well Borehole Drilling Rig With 92KW Diesel Engine
Keyword: Steel Crawler Water Well Borehole Drilling Rig
Depth: 400m
Hole Diameter: 138-350mm
Crawler: Steel Crawler
Transport Size: 5200*1600*2300
Rig Mass: 7500kg
Power: 92kw
Highlight:

Borehole Drilling Rig Diesel

,

Borehole Drilling Rig 92KW

,

400M Water Hole Drilling Machine

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL400S
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

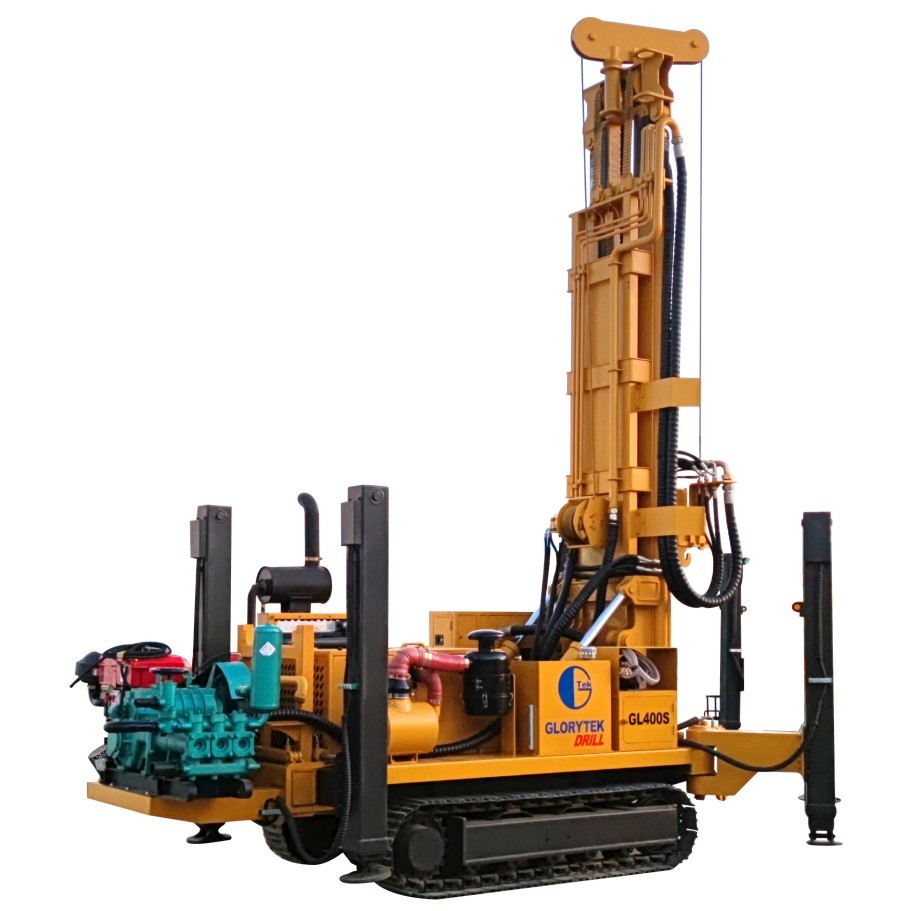

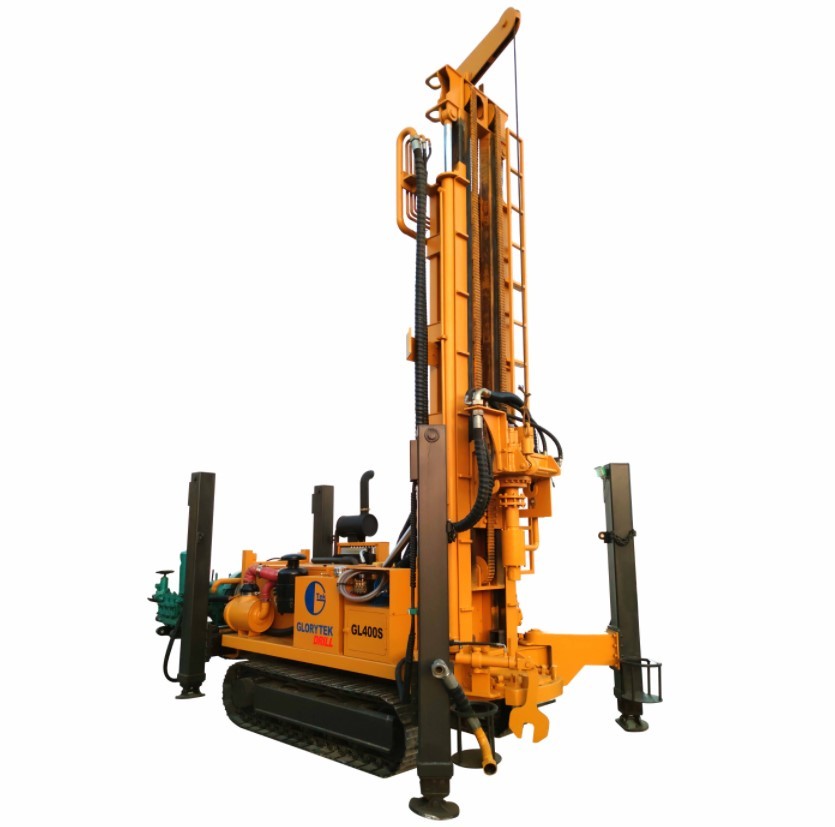

GL400S 400M Steel Crawler Water Well Borehole Drilling Rig With 92KW Diesel Engine



Description:



GL-400S drilling rig is a crawler drilling rig independently researched and developed by our company.

It is a medium-sized, efficient and multi-functional drilling equipment integrating the functions of water drilling and air drilling.

It is mainly used for core drilling of large and small diameters based on alloy bits and diamond bits, as well as well holes for engineering geological surveys, hydrology, water wells, agricultural irrigation wells and other purposes, especially suitable for water intake projects in mountainous areas and rock formations.



Tehnical Parameter:

Item
Specification
Drilling depth (m)
400
Drilling diameter(mm)
138-350
Air pressure (Mpa)
1.2-3.5
Air consumption(m³/min)
16-55
Rod length (m)
3.0 6.0
Rod diameter(mm)
φ89 φ102 φ114
Main shaft pressure (T)
5
Lifting force (T)
25
Total swing stroke(M)
6.6
Max. rotary torque(N.m)
12000/6000
Max.rotary speed (r/min)
50/100
Secondary winch lifting force (T)
2
Jacks stroke(M)
1.5
Moving speed(km/h)
2.5
Climbing ability(°)
21°
Weight of the rig(T)
7.5
Working dimensions(M)
3.1x2.8x7.3
Diesel engine(kw)
92KW 6-cylinder
The oil pump
Plunger pump
Overall dimensions(MM)
5200*1600*2300
Working condition
Loose layer and bedrock
Drilling method
Top drive hydraulic rotary drilling, downhole hammer drilling,mud drilling
Suitable hammer
High pressure 5",6" 8"
Optional accessories
Mud pump,Centrifugal pump,generator, foam pump,Dustproof pump




Related products



400M Borehole Drilling Rig , Water Hole Drilling Machine 92KW Diesel Powered 0


Customer Visting

400M Borehole Drilling Rig , Water Hole Drilling Machine 92KW Diesel Powered 1

Company Profile

400M Borehole Drilling Rig , Water Hole Drilling Machine 92KW Diesel Powered 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
