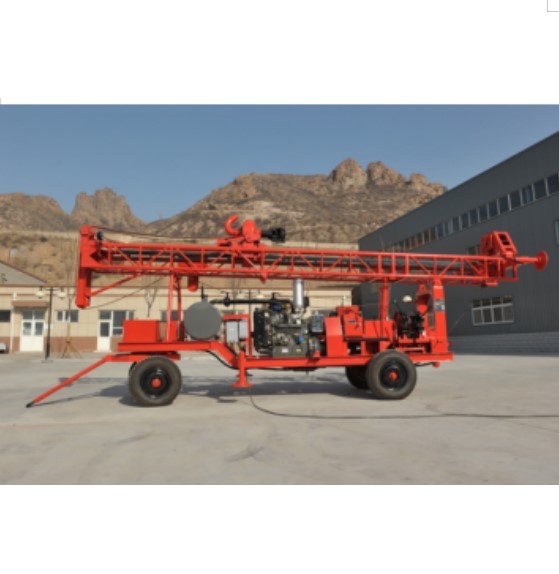

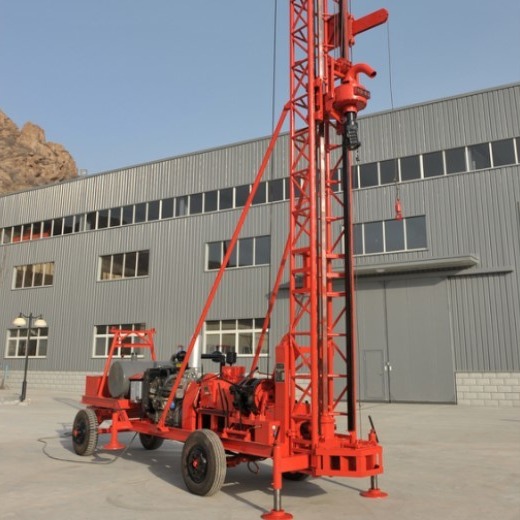

Four Wheel Trailer Mounted Drill Rig For Agricultural Irrigation

1
MOQ
Negotiable
Price
Four Wheel Trailer Mounted Drill Rig For Agricultural Irrigation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL-IIA Four Wheel Trailer 250m Agricultural Borehole Drilling Rig
Keyword: Agricultural Borehole Drilling Rig
Depth: 250m
Hole Diameter: 90-1200mm
Chassis: 4 Wheel Trailer
Weight: 3800kg
Highlight:

Four Wheel Trailer Mounted Drill Rig

,

Agricultural Trailer Mounted Drill Rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL-IIA
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 50sets/month
Product Description

GL-IIA Four Wheel Trailer 250m Agricultural Borehole Drilling Rig



Description:

GL-IIA trailer drilling rig is mainly suitable for drilling of drinking water wells, agricultural irrigation borehole water drilling.

GL-IIA trailer can be pulled and moved by tractors, cars, etc. It is convenient and quick to move.

The max. hole dia. can be 1200mm, it is suitable for big hole drilling.

The mechanic drill head is power while drilling.

This model is equipped with LBN-20 centrifugal pump, the max. flow can reach 80m3/h.



Tehnical Parameter:

Drilling Parameter
Hole diameter :
90-1200(mm)
Hole depth :
250(m)
Run Of Rod :
3,4(m)
Drill rod diameter :
φ73 φ89 φ95 φ133(mm)
Drilling Technology :
Normal and Reverse Circulation for both Mud and Air
Down‐The‐Hole hammers:
Middle‐High‐Pressure Air
Performance Parameter
Drill Head Inside Diameter :
φ80 φ120
Drill Head lifting speed(m/s) :
0.37 0.16
Drill Head lifting Force(kN) :
45.4 105
Drill Head Spin Speed:
A(Forward:14-23-52-84,Reverse:8-13-29-47r/min)
B(Forward:32-52-116-188,Reverse:18-29-65-106r/min)
Shape Parameters
Dimensions:
(L-W-H) Working conditions 5300×2000×7200(mm)
Transport status:
(L-W-H) 7900×2000×3000(mm)
Supporting Form :
Mechanical Screw
Mast Up‐Down :
Hydraulic Type
Rig mass:
3800(Kg)
Chassis :
Trailer with four wheels
Power Unit :
Diesel Engine
Power:
49(kW)
Mud pump :
LBN-20 Normal and Reverse Circulation Pump Group
Flow(m³/h) :
80
Main Hoist Lifting Force:
20.6(kN)
Auxiliary Hoist Lifting Force:
0-15(kN)
Notes: Drill head spin speed can be selected, A is normal




Related products



Four Wheel Trailer Mounted Drill Rig For Agricultural Irrigation 0


Customer Visting

Four Wheel Trailer Mounted Drill Rig For Agricultural Irrigation 1

Company Profile

Four Wheel Trailer Mounted Drill Rig For Agricultural Irrigation 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
