Rotary Borehole Drilling Rig , Trailer Type Air Drilling Equipment For 400m

1
MOQ
Negotiable
Price
Rotary Borehole Drilling Rig , Trailer Type Air Drilling Equipment For 400m
Features Gallery Product Description Request A Quote
Features
Specifications
Name: T-400 Trailer Type Air Drilling And Mud Drilling Borehole Drilling Rig For 400m
Keyword: Borehole Drilling Rig For 400m
Depth: 400m
Drilling Pipe: 89*10*5500mm
Hole Diameter: 500mm
Mud Pump: 850l/min
Drilling Way: Rotary
Transport Size: 12.5*2.5*3.75m
Highlight:

Rotary Borehole Drilling Rig

,

Air Borehole Drilling Rig

,

400m Air Drilling Equipment

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: T-400
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

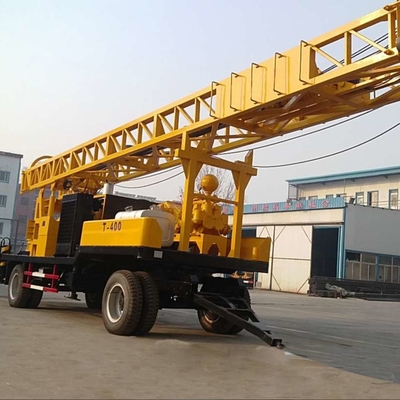

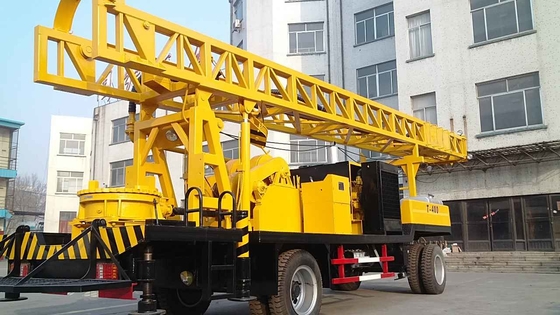

T-400 Trailer Type Air Drilling And Mud Drilling Borehole Drilling Rig For 400m



Description:



T-400 is a turntable type rotary drilling rig which is mainly applied to water well, construction, national defense building foundation, geological exploration, geothermic well and other projects with holes.

It can drill in soil, sand, rubble and the general rock layer.

The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved.

The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.

Power force is from the Cummins Engine which can be easily used outdoors.

The rotary table can provide three different speeds which can meet the requirement of different stratum drilling and it will be beneficial to improve rig efficiency.

The rig can erect by itself, convenient and reliable.

The main winch and deputy winch are all using a planetary gear structure which can be operated conveniently and reliably.

Drill chassis use traction device which can be towed by the general tractors.



Tehnical Parameter:



Model of drilling rig T-400
Drilling depth 400m
Drilling hole 500mm
Diameter of rotary table thru hole 500mm
Speed of rotary table 44,77,139r/min
Capacity with single rope of winch Main winch 4 Ton
Vice winch 3 Ton
The capacity for main winch 24 ton
The capacity for vice winch 12ton
Kelly pipe 108*108*7500mm
drilling pipe 89*10*5500mm
Rated load of mast 280KN
Effective height of mast 11.5m
Mud pump BW850/20
Diameter of piston 150mm
Stroke of piston 180mm
Flow rate 850L/min 600L/min
Pressure 2Mpa 3Mpa
Independent power Cummins engine
Power 97Kw
Transport Size 12.5*2.5*3.75m





Customer Visting

Rotary Borehole Drilling Rig , Trailer Type Air Drilling Equipment For 400m 0

Company Profile

Rotary Borehole Drilling Rig , Trailer Type Air Drilling Equipment For 400m 1

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
