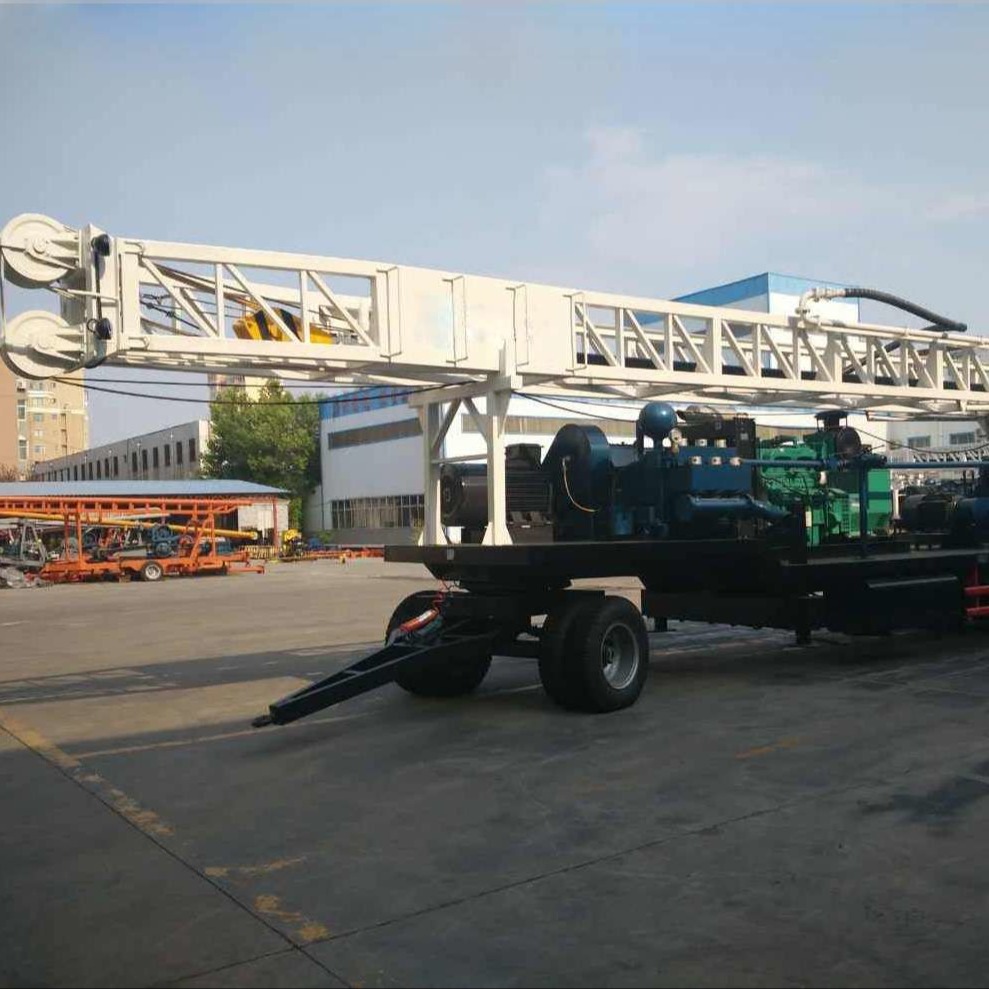

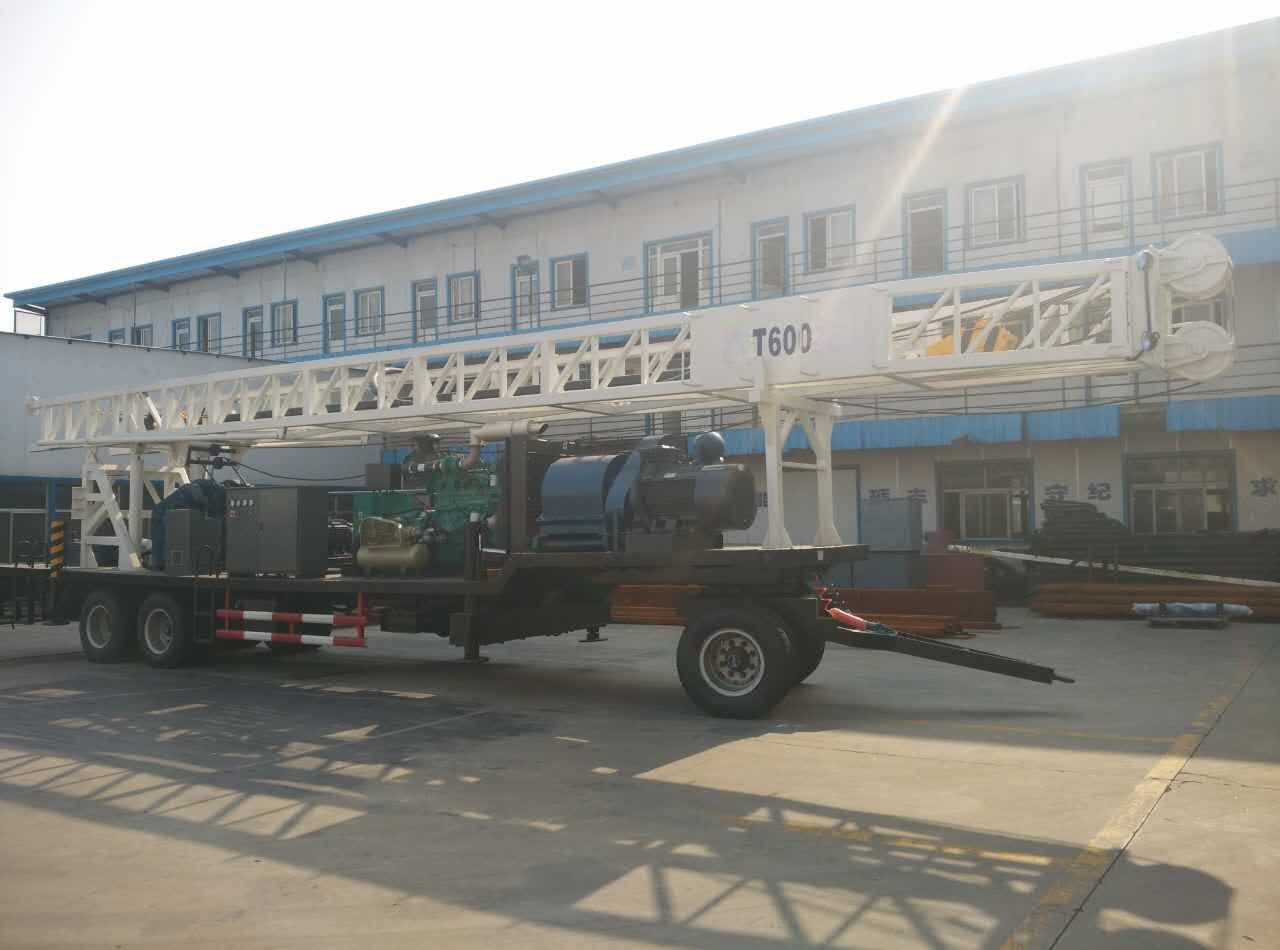

T-600 Trailer Mounted Hydraulic Rotary Water Well Borehole Drilling Rig
Description:
It's a rotary table drilling rig which is mainly applied to water well, construction, national defense building foundation, geothermic well and other projects with holes.
It can drill in soil, sand, and the general soft rock layer;
The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved;
The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.
Power force is from the CUMMINS diesel generator set which can be easily used outdoors;
The rotary table can provide three different speeds which can meet the requirement of different stratum drilling and it will be beneficial to improve rig efficiency;
The rig can erect by itself, convenient and reliable;
Drill chassis use traction device which can be towed by the general tractors.
Tehnical Parameter:
| Model of drilling rig | T-600 | ||
| Drilling depth | 600m | ||
| Diameter of hole | 200-500mm | ||
| Diameter of rotary table thru hole | 500mm | ||
| Max Torque for rotary table | 20 KN.M | ||
| Speed of rotary table | 50,80,150r/min | ||
| Capacity with single rope of winch | Main winch | 4 Ton | |
| Vice winch | 3 Ton | ||
| The capacity for main winch | 24 ton | ||
| The capacity for vice winch | 12ton | ||
| Kelly pipe | 108*108*10500mm | ||
| drilling pipe | 89*10*9000mm | ||
| The max load of mast | 36 Ton | ||
| Effective height of mast | 14.5m | ||
| Input power for rig | 55Kw | ||
| Mud pump | Liner Diameter (mm) | 100 110 120 130 140 | |
| Stroke of piston (mm) | 160 | ||
| Theoretical flow (L / S) | 8.4 ;10.3; 12.2;14.3; 16.6 | ||
| Rated pressure (Mpa) | 10 8 7 6 5 | ||
| Diameter of suction tube | 152mm | ||
| Diameter of discharge pipe | 65mm | ||
| Input power kW(HP) | 95 (130) | ||
| Gear pumps | Model | CB-E532F | |
| Displacement(ml/r) | 30 | ||
| Rated pressure(Mpa) | 20 | ||
| Max pressure(Mpa) | 25 | ||
| Motor power | 11Kw | ||
| Power | Model | generator Set | |
| Diesel engine | CUMMINS-315 Hp | ||
| Transport size (L*W*H) | 16650*2500*4200mm | ||
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
