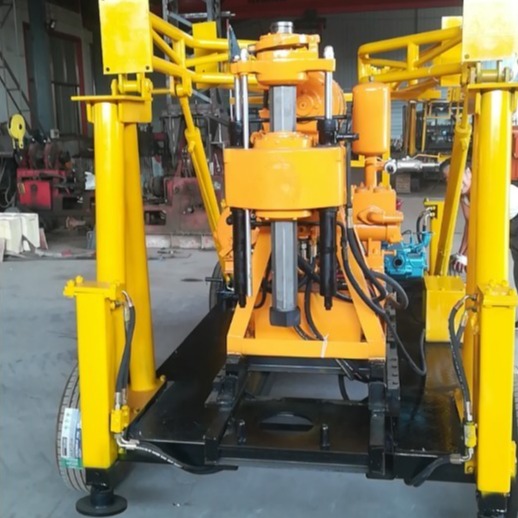

GL200 Trailer Mounted Borehole 200m Water Well Digging Borehole Drilling Rig
Description:
GL200 drilling rig is mainly used in geological exploration, construction pile work, dam reinforcement, engineering survey, civil water well, core sampling and other fields.

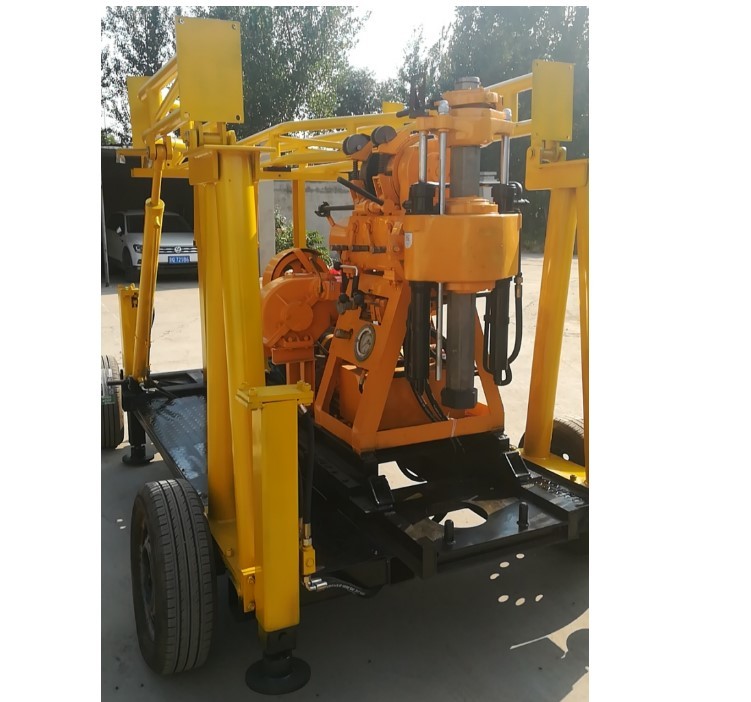

According to customer's request, we can process into trailer style.
Wheeled walking mechanism, the whole machine is more convenient to carry.
The hydraulic outrigger is convenient for the drilling rig to level the hydraulic feeding mechanism, improving the drilling efficiency, high working efficiency, convenient operation, safety and reliability.
The compact design of each part saves space and is durable
The operating handle is located in a centralized location, which is convenient for construction personnel to control the overall situation of the drilling rig.
Tehnical Parameter:
| Models | GL200 | ||
| Drill | Drilling depth | 250m | |
| Initial hole dia | 200mm | ||
| Final hole dia | 75mm | ||
| Drill rod dia | 50mm | ||
| Angle range | 75°-90° | ||
| Dimensions(L×W×H) | 1700×1030×1270 (mm) | ||
| Swivel Head | Spindle stroke | 450mm | |
| Spindle lifting capacity max | 30KN | ||
| Hoist | Max .lifting capacity(single rope) | 20/40/90/180 | |
| Power | diesel engine | Model | L28N |
| Rated power | 16.2KW | ||
| Rated speed | 2200r/min | ||
| motor | Model | Y160L-4 | |
| Rated power | 11KW | ||
| Rated speed | 1460r/min | ||
Related products
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
