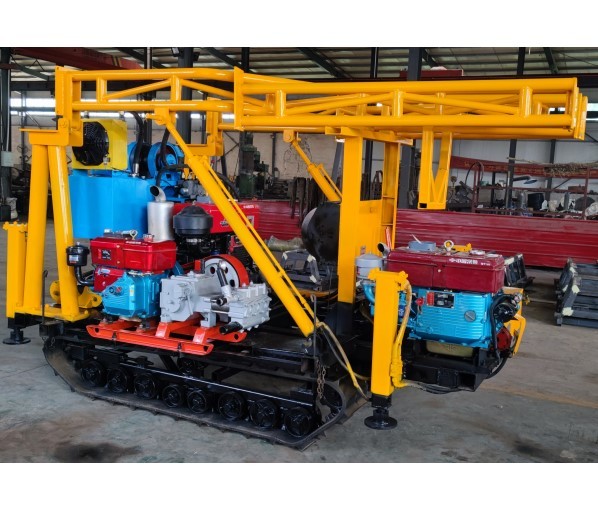

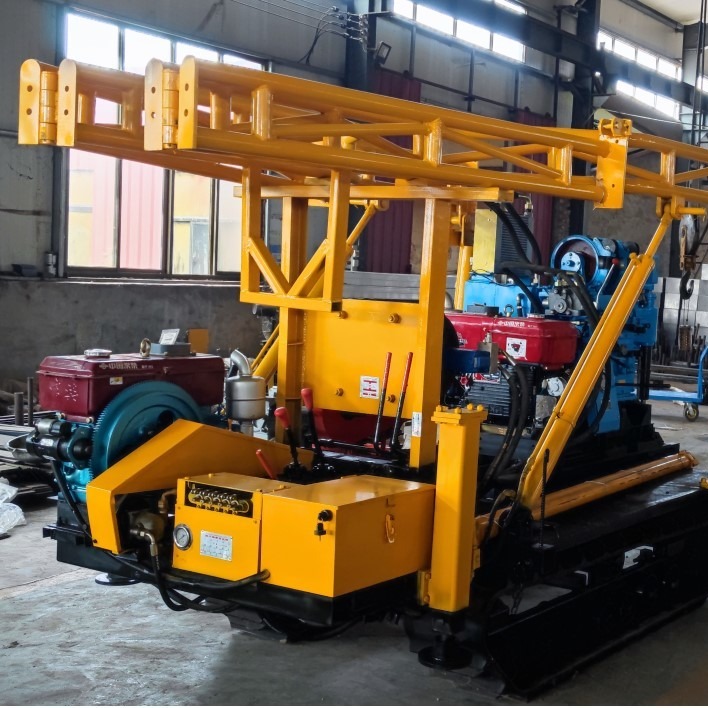

GL250 Portable Hard Rock 250m Water Well Crawler Underground Borehole Drilling Rig
Description:
GL250 drilling rig is mainly used in geological exploration, engineering survey, civil water well, core sampling construction pile work, dam reinforcement, and other fields.
GL250 crawler drilling rig is widely used for drilling and water exploration equipment in plains, mountainous areas and inconvenient areasThe drilling rig has a hydraulic automatic feeding mechanism, which improves drilling efficiency and reduces labor intensity.
The compact design of each part saves space and is durable
The structure is compact, the handle is concentrated, the occupation area is small, the weight is light, the decomposability is strong, it is easy to move, and it is suitable for operation in the plain or mountainous area.
It is equipped with rubber crawler chassis, which can move easily at site.
Tehnical Parameter:
| Models | GL250 | ||
| Drill | Drilling depth | 250m | |
| Initial hole dia | 200mm | ||
| Final hole dia | 75mm | ||
| Drill rod dia | 50mm | ||
| Angle range | 75°-90° | ||
| Dimensions(L×W×H) | 1700X1030X1270 | ||
| (mm) | |||
| Swivel Head | Spindle stroke | 450mm | |
| Spindle lifting capacity max | 30 KN | ||
| Hoist | Max .lifting capacity(single rope) | 20KN | |
| Power | diesel engine | Model | L28N |
| Rated power | 20KW | ||
| Rated speed | 2000r/min | ||
| motor | Model | Y160L-4 | |
| Rated power | 15KW | ||
| Rated speed | 1440r/min | ||
Related products
GL250 Crawler borehole drilling rig can equip with BW 160-10 three cylinder mud pump. We can also equip other model of mud pumps according to clients' requirement.
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
