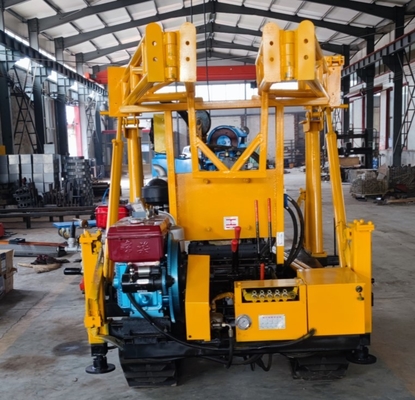

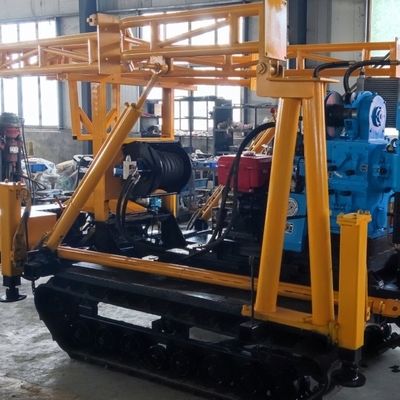

Hydraulic Rotary GL250 Crawler Portable 200m Depth Water Well Borehole Drilling Rig
Description:
GL250 drilling rig is mainly used in used for drilling and water exploration equipment in plains, mountainous areas and inconvenient areas
The drilling rig has a hydraulic automatic feeding mechanism, which improves drilling efficiency and reduces labor intensity.
Adopt 53×59 hexagonal active drill pipe, strong rigidity and large transmission torque
This machine adopts the technical taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.
The hoist planetary gear is increased in module and a support frame is installed, which greatly improves the hoisting and braking capacity of the hoist.
The positioning of four sets of bearings in the vertical shaft box ensures that the gyrator has enough rigidity to deal with complex geological conditions such as gravel layer and pebble layer.
Equipped with an integrated mud pump with a flow rate of 160L/min, it has the characteristics of cost saving, compact structure and easy movement.
It is equipped with rubber crawler chassis, which can move easily at site.
Tehnical Parameter:
| Models | GL250 Crawler type | ||
| Drill | Drilling depth | 250m | |
| Initial hole dia | 200mm | ||
| Final hole dia | 75mm | ||
| Drill rod dia | 50mm | ||
| Angle range | 75°-90° | ||
| Dimensions(L×W×H) | 1700*1030*1270(mm) | ||
| Swivel Head | Spindle stroke | 450mm | |
| Spindle lifting capacity max | 30 KN | ||
| Hoist | Max .lifting capacity(single rope) | 20KN | |
| Power | diesel engine | Model | L28N |
| Rated power | 20KW | ||
| Rated speed | 2000r/min | ||
Related products
GL250 Crawler borehole drilling rig can equip with BW 160-10 three cylinder mud pump. We can also equip other model of mud pumps according to clients' requirement.
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 15-20 days after receiving payment, the drilling tools would be about 7-10 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
