GL800S 800m Crawler Type DTH Air Drilling Borehole Drilling Rig for Big Hole Casing Drilling
Description:

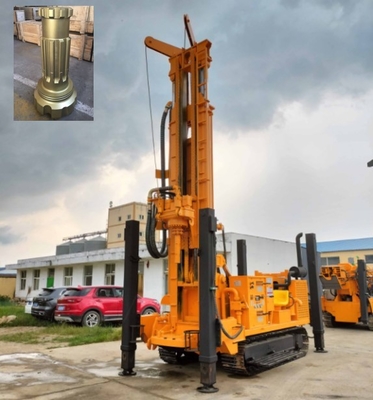

The GL800S 800m drill rig is equipped with steel tracks that are strong in support and action. This machine drills 800m deep water wells with no problem at all. Usually we recommend customers to choose air drilling.
The GL800S 800m water well drilling rig can be used with drill rods with diameter of 89mm, 102mm, 114mm, 127mm, 140mm, as per the hole diameter you drill.

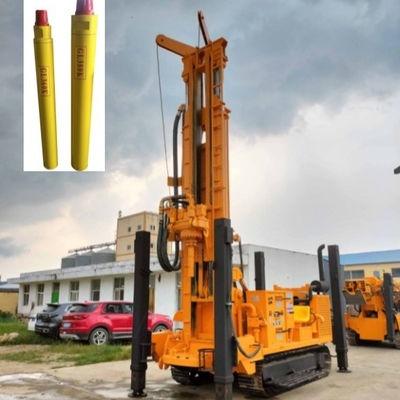

Air drilling is much more efficient than mud drilling. We can provide DTH hammer and bit in top level quality. If you need air compressor, we can also provide it.
Tehnical Parameter:
| Max drilling depth | M | 800 |
| Drilling diameter | mm | 105-500 |
| Air pressure | Mpa | 1.2-3.5 |
| Rod length | m | 3-6 |
| Rod diameter | mm | 89-102-114-127-140 |
| Main shaft pressure | T | 8 |
| Lifting force | T | 30-35 |
| Total Rotating stroke | M | 6.8 |
| Max Rotating torque | Nm | 17000 |
| Max Rotating speed | r/min | 100 |
| Winch liftng force | T | big winch 2.5 |
| small winch 1.0 | ||
| Jacks stroke | m | 1.75 |
| Moving speed | km/h | 2.5 |
| Climbing ability | slope | 21° |
| Weight of the rig | T | 13.8 |
| The engine | Weichai176KW/Yuchai 191KW | |
| The main pump | K3V180 Plunger pump | |
| Dimension | mm | 5700-5100x2000*2800 |
| Working condition | Loose layer and bedrock | |
| Drilling method | Hydraulic rotation and propulsion, DTH hammer or mud drilling | |
