D24x40 Hdd Drill Rod HDD Integral Drill Rod For Vemeer Drilling Rig
Glorytek can provide the Hdd Drill Rod for Vemeer Drilling rigs with long life service and good price.
| Model of HDD machine | Thread type | OD of the tube (mm) | OD of tool joint (mm) | ID of tool joint (mm) | Wall thickness of tube (mm) | Length (mm) | Grade |
Rated Torque (N.M) |
Min. Bending Radius (m) |
| D7x11, D10X15S3, D9x13 | FS1 #200 | 42 | 48 | 19 | 6 | 1829 | S135 | 2040 | 29 |
| D10x14, D10x1 5 | FS1 #200 | 42 | 48 | 19 | 6 | 3048 | S135 | 2040 | 29 |
| D16x20A, D18x22, D20x22 | FS1 #250 | 50 | 54 | 19 | 6 | 3048 | S135 | 2720 | 30 |
| D20x22A, D20x22Series II, D20x22S3 | FS1 #400 | 50 | 57 | 22 | 6.5 | 3048 | S135 | 3536 | 31 |
| D24x40, D24X40A, D24x40Series II, D23x30S3, D24x40S3 | FS1 #600 | 60 | 66.7 | 22 | 7.5 | 3048 | S135 | 5440 | 33 |
| D40x40 | FS1 #600 | 60 | 66.7 | 22 | 7.5 | 4572 | S135 | 5440 | 33 |
| D33x44, D36x50, D36x50 Series II | FS1 #650 | 60 | 70 | 22 | 7.5 | 3048 | S135 | 6800 | 33 |
| D36x50, D40x55S3, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 3048 | S135 | 6800 | 44.2 |
| D36x50, D36x50 Series II | FS1 #700 | 67 | 79 | 28 | 10 | 4572 | S135 | 6800 | 44.2 |
| D50x100, Uni60x70 | FS1 #900 | 73 | 82.55 | 30 | 10 | 3048 | S135 | 12240 | 51.4 |
| D50x100, D50x100A, D60x90 | FS1 #900 | 73 | 82.55 | 30 | 10 | 4572 | S135 | 12240 | 51.4 |
| D50x100, D80x100 Series II, D60x90 | FS1 #800 | 88.9 | 92 | 38 | 10 | 4572 | S135 | 13600 | 51.4 |
| D100x120 Series II , D130x150, D60x90, D60x90S3, D100x120, D100x140S3 | FS1 #1000 | 89 | 111.5 | 57 | 12.1 | 6096 | S135 | 20400 | 60.2 |
| D33x44, D36x50, D36x50 Series II | FS2 | 60 | 70 | 30 | 7.5 | 3048 | S135 | 6800 | 33 |
| D33x44, D36x50, D36x50 Series II | FS2 | 60 | 70 | 30 | 7.5 | 4572 | S135 | 6800 | 33 |
| D100x120 | FS2 | 88.9 | 104.8 | 57 | 10 | 6096 | S135 | 24480 | 60.2 |
| D36x50DR-lnner rod | FS1 #200 | 42.1 | 48 | 19 | 49 | 3048 | S135 | 2040 | 29 |
| D36x50DR-Outer rod | FS1 #750 | 66.7 | 84 | 52 | 7.1 | 3048 | S135 | 6600 | 40 |
HDD drill rods are widely used for horizontal directional drilling for construction of municipal engineering, plumbing facilities, sewer pipes, pressure pipes, etc.
The twice thickening molding technology of pipe joint makes the transition zone very stable and smooth which tremendously reduce the resistance of mud through the pipe.
Material selection-with API standard and reliable performance.

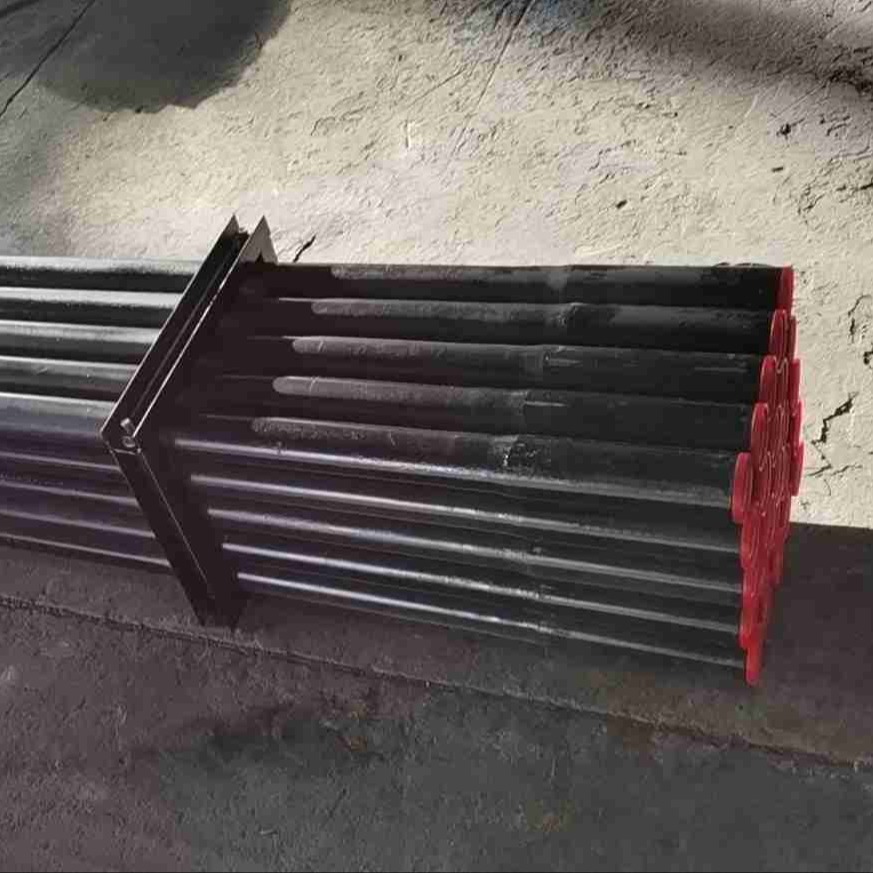

Packing: The Water Well Drill Rod is normally packed by steel frame.
Delivery: Normally 15 days after down payment.
Shipping method: by sea
Hot extrusion machine
Adopt T-connector hydraulic for joints forging, to improve the metallo graphical fibrous tissue and impact toughness. So guarantee the comprehensive mechanical properties of the welding joints.
Heat treatment equipment
To use controllable atmosphere heat treatment equipment. Ensure each workpiece sorbite transfermation more fully, greatly enhance the mechanical properties of joints.
Thread machining equipment
To use CNC machine tool to thread finish machining and thread close tolerances.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects, etc.
We own the most advanced pipe production line in China.The technology of heat treatment product line has achieved to the world-class leading levels, we have 200T Friction Welding Machine is the largest model welder, the largest welding capacity can reach drill rod of 200mm OD.
The tube body upsetting technology has achieved the advanced level.Thickening of the anti-extrusion molding of pipe end technology can make the transition zone of internal and external upsetting reach the length to 200mm above.
And the one-piece drilling upsetting technology is more outstanding.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
