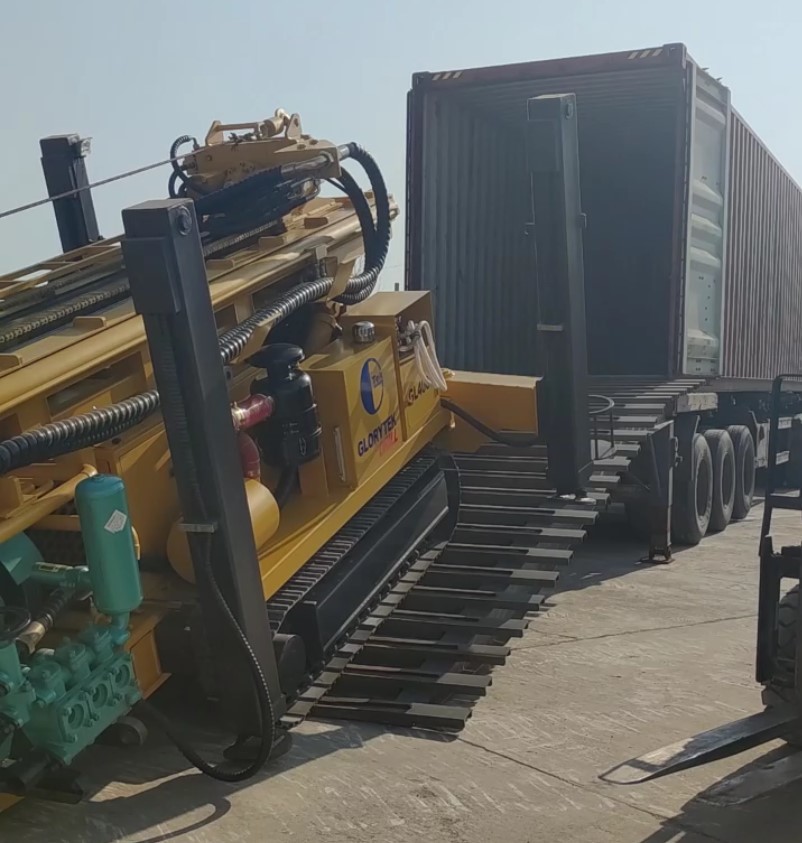

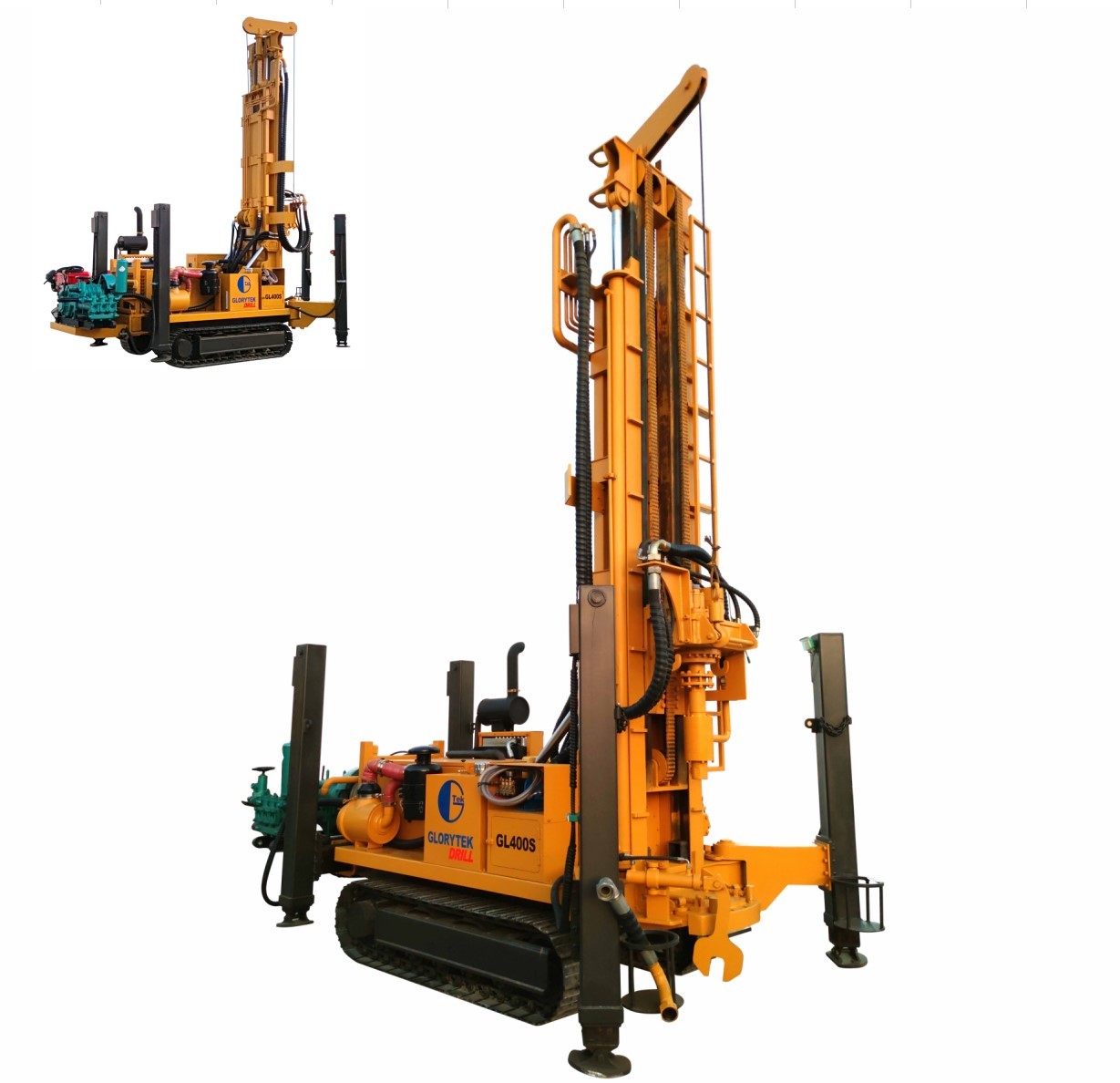

GL400S 400m Full Hydraulic Hard Rock Drilling Borehole Drilling Rig based on Crawler Chassis
Description:
The GL400S drilling rig is a fully hydraulic drilling rig. It is driven by a hydraulic motor through a reducer, and replaces the turntable and water tap on the rotary drilling rig with a power head that moves up and down the tower to drive the drill pipe and drill bit to rotate and cut rock formations.
The drilling depth of this rig can reach 400m. The hole diameter range is 105-350mm. Usually used with DTH hammer and bit. The work efficiency is high, the operation is simple, and the price is very competitive. Welcome to order.
Tehnical Parameter:
| Technical Parameter | |
| Max drilling depth | 400m |
| Drilling diameter | 105-350mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102/114mm |
| Main shaft pressure | 6T |
| Lifting force | 28T |
| Fast lifting speed | 24m/min |
| Fast forwarding speed | 50m/min |
| Rotary torque | 10000 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 3T |
| High leg stroke | 1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 9.2T |
| Dimension | 5.4m x 1.7m x 2.35m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 90KW-6 Cylinders |
Features:
(1) The drilling rig can swing, extend and rotate, and has the flexibility to adapt to the working environment, which can shorten the preparation time for the operation.
(2) The front end of the working cylinder is equipped with a two-way hydraulic locking device to ensure safety and stability.
(3) The crawler traveling mechanism adopts a separate pressed drive device and is equipped with a hydraulic jack support device, which can be turned on the spot and can adapt to uneven ground operations.
