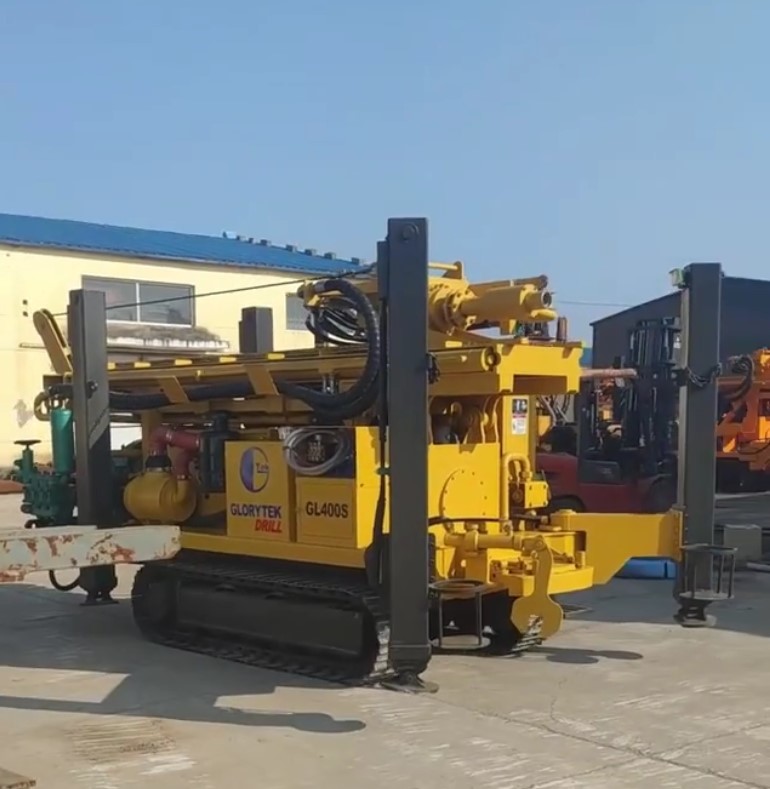

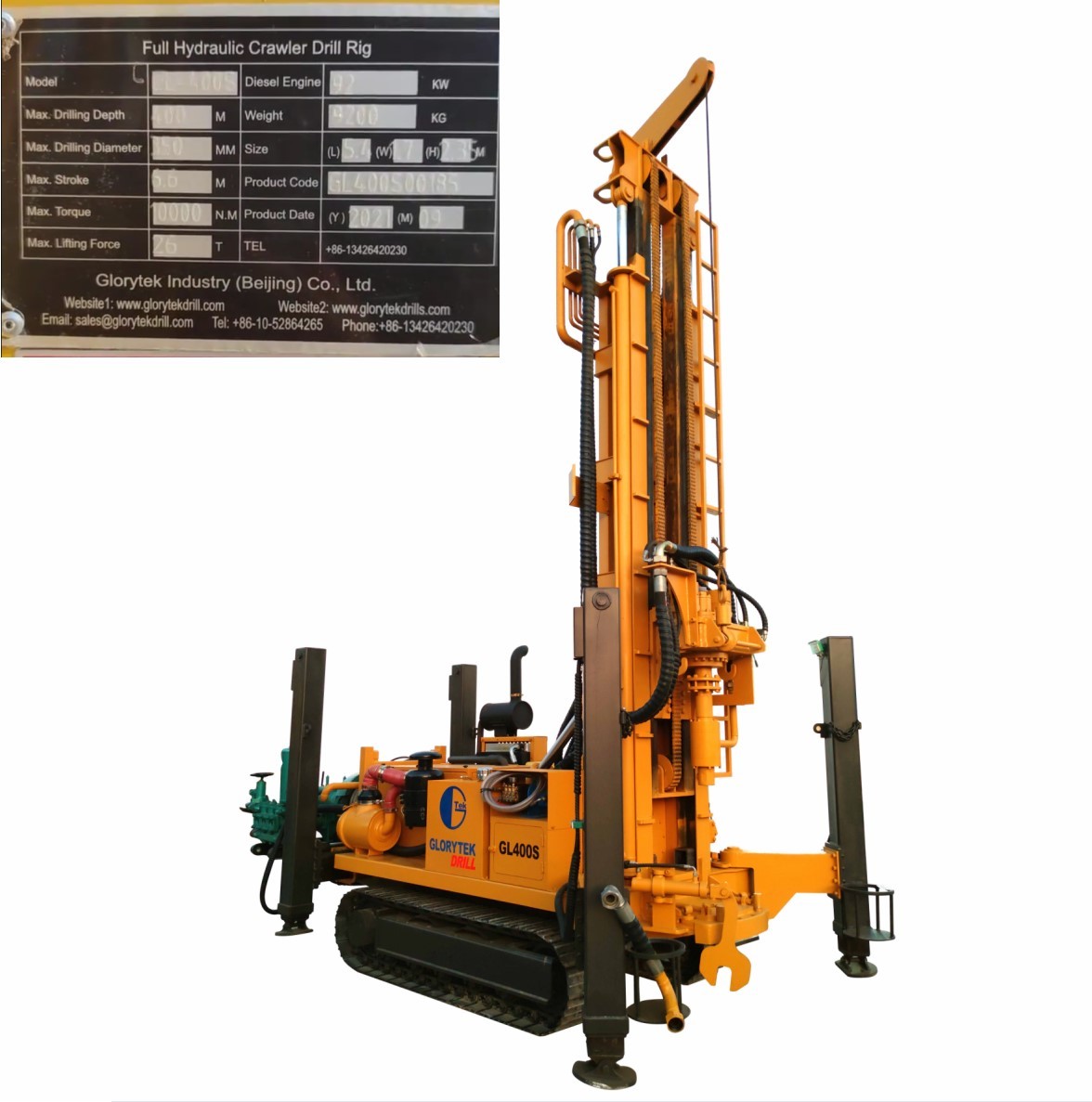

GL400S 400m Tracked Mounted Full Hydraulic Borehole Drilling Rig for Civil and Industrial Drilling
Description:
GL400S 400m Tracked Mounted Full Hydraulic Borehole Drilling Rig is a machine suitable for civil and industrial well drilling.
GL400S 400m Tracked Mounted Full Hydraulic Borehole Drilling Rig is designed to be more suitable for air compressor drilling. We can equip you with a suitable air compressor and a complete set of drilling tools, including drill pipes, DTH hammer and bit, joints, etc. All the products are of high quality and the prices are very good. So far, we have supplied different drilling rigs and various drilling tools to customers in more than 60 countries.
Tehnical Parameter:
| Technical Parameter | |
| Max drilling depth | 400m |
| Drilling diameter | 105-350mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102/114mm |
| Main shaft pressure | 6T |
| Lifting force | 28T |
| Fast lifting speed | 24m/min |
| Fast forwarding speed | 50m/min |
| Rotary torque | 10000 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 3T |
| High leg stroke | 1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 9.2T |
| Dimension | 5.4m x 1.7m x 2.35m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 90KW-6 Cylinders |
Features:
1. Power system, the equipment that provides energy for the entire drilling rig;
2. Working system, equipment for working according to the requirements of the process;
3. Transmission system, equipment for transmitting, conveying and distributing energy for working units;
4. Control system, control each system and equipment, coordinate and work accurately according to the requirements of the process;
5. Auxiliary system, equipment that assists the main system to work.
