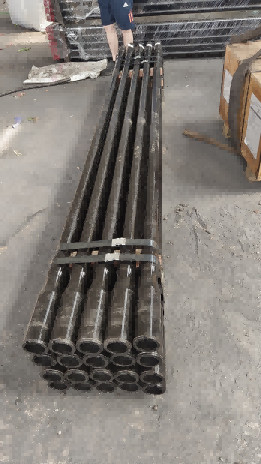

D100x120 Trenchless Drill Directional Boring Pipe FS1 #1000 Thread
Description
Glorytek can provide the D100X120 Hdd Drill Rod for Vemeer Drilling rigs with long life service and good price.
Technical Parameter
| Model of HDD machine |
Thread type |
OD of the tube (mm) |
OD of tool joint (mm) |
ID of tool joint (mm) |
Wall thickness of tube (mm) |
Length (mm) |
Grade |
Rated Torque
(N.M)
|
Min. Bending Radius (m) |
| D100x120 Series II , D130x150, D60x90, D60x90S3, D100x120, D100x140S3 |
FS1 #1000 |
89 |
111.5 |
57 |
12.1 |
6096 |
S135 |
20400 |
60.2 |
| D100x120 |
FS2 |
88.9 |
104.8 |
57 |
10 |
6096 |
S135 |
24480 |
60.2 |
Applications
HDD drill rods are widely used for horizontal directional drilling for construction of municipal engineering, plumbing facilities, sewer pipes, pressure pipes, etc.
Features
(1)The twice thickening molding technology of pipe joint makes the transition zone very stable and smooth which tremendously reduce the resistance of mud through the pipe.
(2) To bear the bending fatigue load when pushing, pulling and turning in the curved drilling.
(3) When drilling, the pressure medium (liquid or gas) is transported from the drill pipe to the working surface at the bottom of the hole. (8) When the cable is used to transmit the signal at the bottom of the hole, the signal cable is connected inside the specially designed drill pipe.
Packing

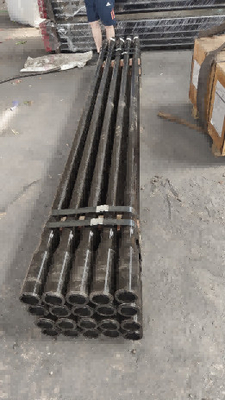

Packing: The Water Well Drill Rod is normally packed by steel frame.
Delivery: Normally 15 days after down payment.
Shipping method: by sea
Our Facility and Quality Management
Hot extrusion machine
Adopt T-connector hydraulic for joints forging, to improve the metallo graphical fibrous tissue and impact toughness. So guarantee the comprehensive mechanical properties of the welding joints.
Heat treatment equipment
To use controllable atmosphere heat treatment equipment. Ensure each workpiece sorbite transfermation more fully, greatly enhance the mechanical properties of joints.
Thread machining equipment
To use CNC machine tool to thread finish machining and thread close tolerances.
Company Profile
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects, etc.
We own the most advanced pipe production line in China.The technology of heat treatment product line has achieved to the world-class leading levels, we have 200T Friction Welding Machine is the largest model welder, the largest welding capacity can reach drill rod of 200mm OD.
The tube body upsetting technology has achieved the advanced level.Thickening of the anti-extrusion molding of pipe end technology can make the transition zone of internal and external upsetting reach the length to 200mm above.
And the one-piece drilling upsetting technology is more outstanding.
FAQ
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
