Name: High Performance Hdd Drill Pipe Rod For Oil And Natural Gas Industry
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: HDD drill rod
Price: 295.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Hot Rolling，high Strength

Thread: FS1 #200

Processing Method: Shot Peening

Process: Forging+Machining+surface Treatment

Bend Radius: 108.2'

Color: Customized

Type: JT920L

Wear Resistance: High

Corrosion Resistance: Yes

Keyword: D9*13 Hdd Drill Rod

Hardness: HRC 40-45

Drill Rod Type: Double Wall Drill Pipe

Tensile Strength: 100,000 Psi

Diameter: 3 Inches

Highlight:

Oil Industry hdd drill rod

High Performance hdd drill pipe

Natural Gas Industry hdd drill pipe

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE,SGS,TUV

Model Number: HDD drill rod

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 5-7 workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000 pieces per month

Gallery

High Performance Hdd Drill Pipe Rod For Oil And Natural Gas Industry

Product Description

1.Application

Horizontal Directional Drilling (HDD) is a technology for underground construction.

a. Oil and natural gas pipelines: HDD is also widely used in the oil and natural gas industry. Through HDD technology, pipelines for transporting oil and natural gas can be installed horizontally across long distances under the sea or in inland areas. HDD technology should reduce the impact on the environment and water bodies and improve construction efficiency.

b. Urban water supply and drainage system: HDD can be used to install urban water supply and drainage pipes. Traditional excavation construction methods require large amounts of land, but HDD can traverse various geological conditions at underground levels, reducing damage to the ground. In addition, the use of HDD can also carry out construction without stopping water supply and drainage, reducing the impact on urban life.

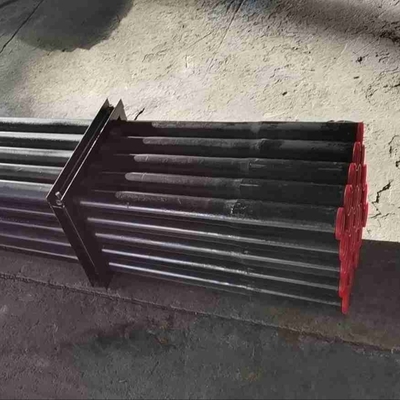

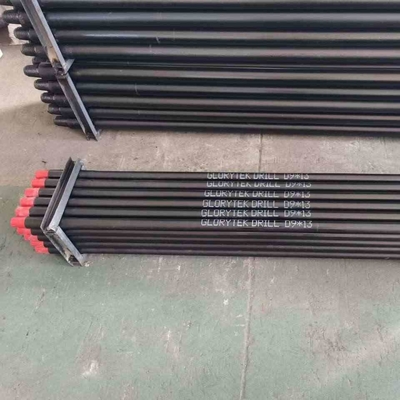

2.Detailed Photos

High Performance Hdd Drill Pipe Rod For Oil And Natural Gas Industry 0

High Performance Hdd Drill Pipe Rod For Oil And Natural Gas Industry 1

3.Main Technical Parameters

RIG BRAND	DRILL PIPE MODEL	OUT. Dia of Tool Joint (mm)	OUT. Dia of tube (mm)	Working length (mm)
JT 2720	JT 2720 FFW	70	54	3
JT 4020	JT 4020 FFW	82,5	76,1	4.5
JT 7020 MACH 1	JT 7020 MACH 1 FFW	102	88,9	4.5
JT 8020 MACH 1	JT 8020 MACH 1 FFW	102	88,9	4.5
JT 100 MACH 1	JT 100 MACH 1 FFW	102	88,9	4.5
VERMEER D7x11 SERIES II	D7x11 (F120 #200)	48	38	1.829
VERMEER D9x13 SERIES II	D7x11 (F120 #200)	48	42,4	1.829
VERMEER D20x22 SERIES II	D24A FFW 48 (F140 #400)	57,15	48,3	3.048
VERMEER D24x40 SERIES II	D24x40 FFW F1 (F160 #600)	68	60,3	3.048
VERMEER D36x50 SERIES II	D36x50 FFW (F260)	70	60,3	3.048
VERMEER D55x100	D80x100 FFW F1 (F180 #800)	93	88,9	4.572
VERMEER D80x100 SERIES II	D80x100 FFW F1 (F180 #800)	93	88,9	4.572
VERMEER D100x120 SERIES II	D100x120 FFW (F289)	108	88,9	6.096

4.The HDD method of pipe laying

Horizontal Directional Drilling; Theory, Practical info & Tips
Horizontal Directional Drilling or HDD, is a steerable trenchless method of installing underground pipe, conduit, or cable in a shallow arc along a prescribed bore path by using a surface-launched drilling rig, with minimal impact on the surrounding area.

5.Packaging

6.Company Profile

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
