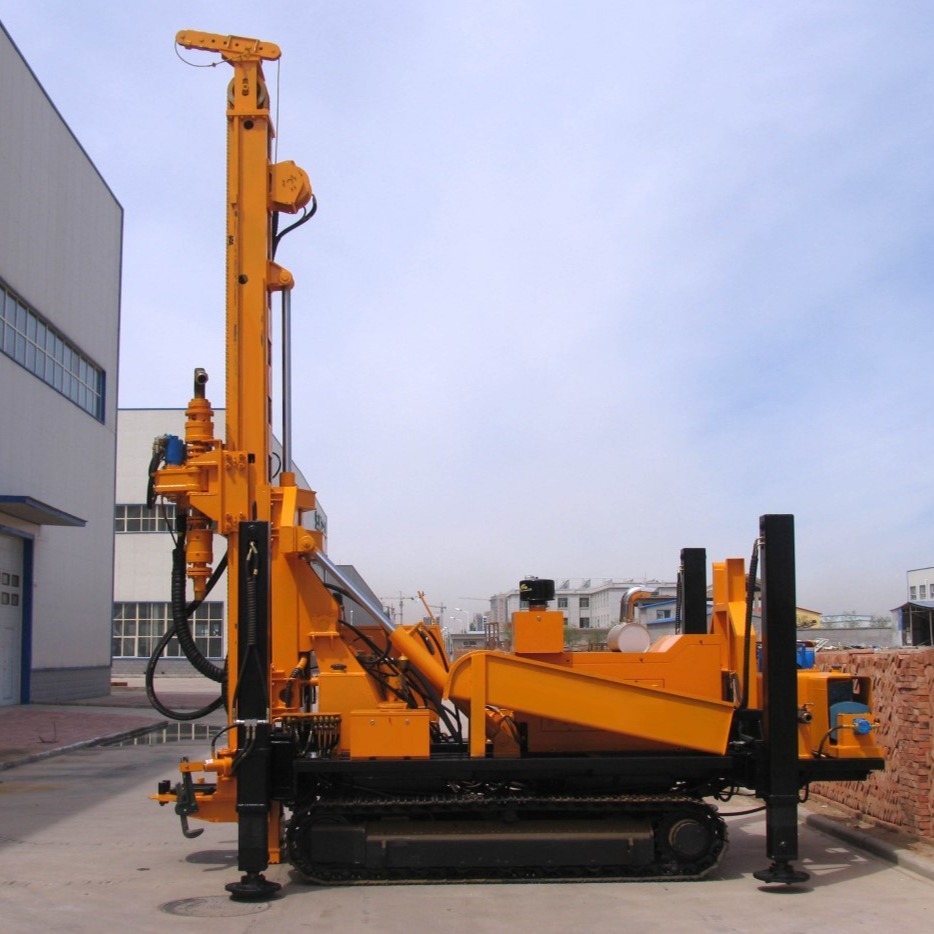

GLF600 Hydraulic Reverse Circulation Rotary Drilling Rc Drill Rig
The walking is a crawler type self-propelled structure, which is easy to move.
It adopts crawler type chassis. Steel track (inlaid with rubber blocks are optional, which is convenient for walking on urban roads).
It is equipped with four high outriggers as standard. When it is transported over long distances and is loaded by a car, it does not need to be lifted, and it can be directly mounted on the car, which is convenient for transportation.
There are four hydraulic outriggers to adjust the level and stability of the car body during operation.
The auxiliary winch can lift objects within 1.5 tons (such as drilling tools, tools, etc.), and can also assist in loading and unloading drill pipes and drilling tools.
The mast (sliding frame) can work in the range of 45° to 90°. The sliding frame is equipped with a compensation mechanism, which can move the sliding frame to the working surface, so that the sliding frame is pressed against the working surface, so that the sliding frame is stable and the working accuracy is improved.
| Model | GLF600 |
| Max. drill depth | 400m |
| Drill diameter | 105-400mm |
| Working air pressure | 1.05-3.45 MPa |
| Air consumption | 16-55 m³/min |
| Drill rod length | 3m |
| Drill rod diameter | Φ102,108,127mm |
| Fast lifting speed | 29m/min |
| Fast feed speed | 48m/min |
| Rotation torque | 10000/5000Nm |
| Rotation speed | 0-75r/min;0-150r/min |
| Feeding efficiency | 10-25m/h |
| Walking speed | 2.5Km/h |
| Grade ability | 21° |
| Weight | 12.5t |
| Whole dimension | 6.8×2.1×2.9m |
| Application formation | Loose layer and bedrock |
| Drill method | Reverse circulation down-the-hole hammer drilling |
| Hammer | Middle pressure and high air pressure series |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
