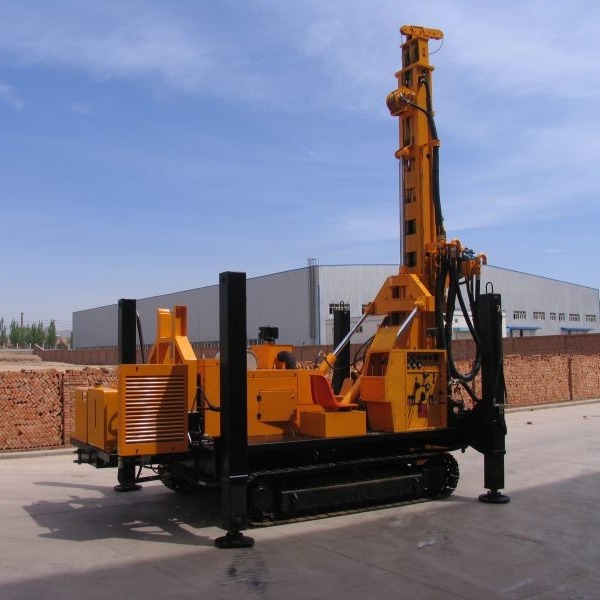

Crawler Base Hydraulic DTH Water Well Mine Sample Rc Drill Rig
GLF600 reverse circulation drilling rig is a multi-functional drilling equipment for drilling water wells.
It is mainly suitable for drilling dewatering wells, 400-meter deep water wells, and drilling wells with a diameter of 105-400mm, agricultural irrigation wells, construction wells, and elevator wells. And other purposes of drilling engineering, especially suitable for drilling engineering in plains and mountainous areas.
The efficiency is more than ten times higher than that of the traditional positive circulation drilling rig, creating economic benefits for users.
The GLF600 reverse circulation drilling rig is hydraulically driven, making efficient use of power. The overall power loss is small, and the drilling cost is low.
The drilling rig is 150r/min speed range, and the rotation torque is 10000n.m.
The drilling rig adopts a hydraulic power head with a long-stroke double-speed mechanism, and the power head travel is 3800mm, which is used to improve the drilling efficiency and reduce the occurrence of drilling blockage and drilling accidents.
The drilling rig adopts dual oil pumps for oil supply, single pump is used for drilling, and double pumps are used for confluence when lifting and lowering; the power loss is small and the auxiliary time is short.
Drilling rig structure, reasonable layout, easy maintenance, maintenance and repair.
| Model | GLF600 |
| Max. drill depth | 400m |
| Drill diameter | 105-400mm |
| Working air pressure | 1.05-3.45 MPa |
| Air consumption | 16-55 m³/min |
| Drill rod length | 3m |
| Drill rod diameter | Φ102,108,127mm |
| Fast lifting speed | 29m/min |
| Fast feed speed | 48m/min |
| Rotation torque | 10000/5000Nm |
| Grade ability | 21° |
| Weight | 12.5t |
| Whole dimension | 6.8×2.1×2.9m |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.
