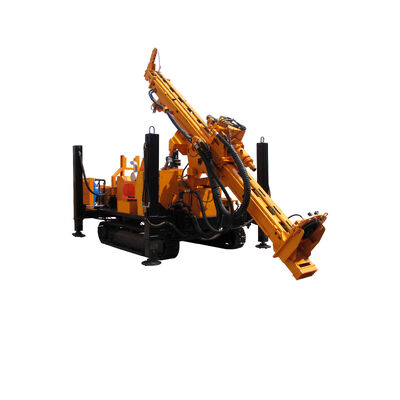

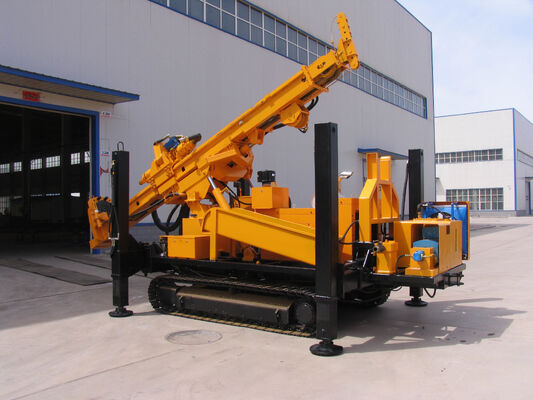

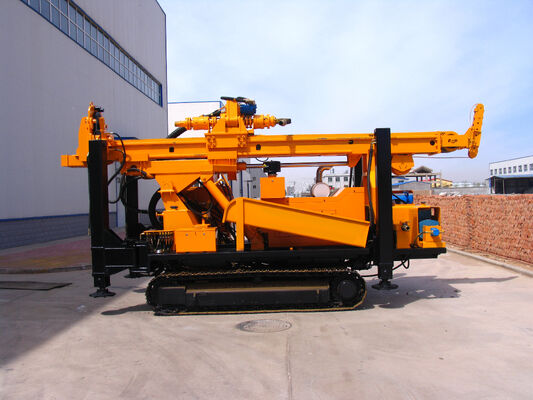

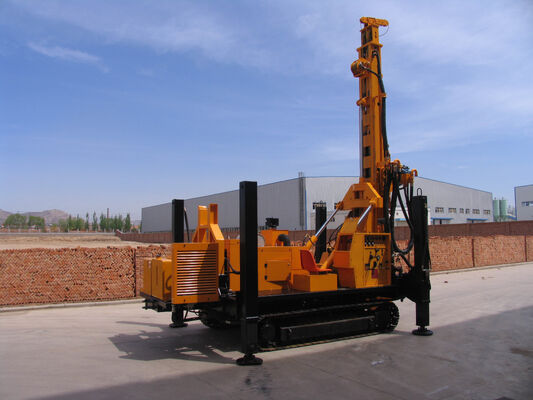

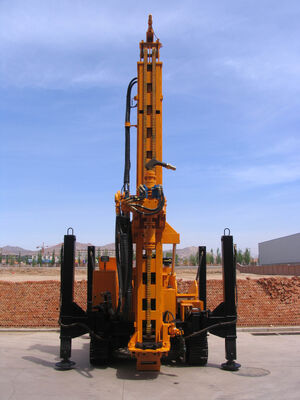

Full Hydraulic Crawler Mounted RC Drill Rig For Bore Hole Hard Rock Drilling

1set
MOQ
Negotiable
Price
Full Hydraulic Crawler Mounted RC Drill Rig For Bore Hole Hard Rock Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Reverse Circulation Drilling Bore Hole Hard Rock Rc Drill Rig
Keyword: Hard Rock Rc Drill Rig
Depth: 400m
Dimension: 7×2.1×2.8 M
Weight: 1200kg
Air Consumption:: 16-55 M³/min
Drill Rod Diameter:: 108mm
Drill Rod Length: 3m
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: GLF500
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20sets/month
Product Description

GLF500 Reverse Circulation Drill Rig



Description

GLF500 drilling rig is mounted on a crawler chassis, driven by full hydraulic system, power head type drilling rig, which is used to drill vertical or inclined hole.

Rig with full hydraulic transmission and control operates easily and flexibly. It can show smooth operation and reliable.

GLF500 reverse circulation drilling rig is suitable for complex foundation engineering construction such as clay layer, cobblestone, cemented cobblestone and rock embedded. It is widely used in bridge bored piles,underground continuous wall foundation engineering and farmland water conservancy construction.

The power head adopts a three-ring deceleration mechanism, which is a fairly mature product. The reducer with large center hole has high load overload capacity, compact structure, low noise and long service life. It is the most ideal power unit for domestic drilling rigs at present.



Technical Parameter



Model

GLF500

Max. drill depth

400m

Drill diameter

105-400mm

Working air pressure

1.2-3.5 MPa

Air consumption

16-55 m3/min

Drill rod length

3m

Drill rod diameter

108mm

Axial pressure

0-7t (Adjustable)

Lifting force

25t

Slow lifting speed

5m/min

Slow feed speed

0-7m/min (Adjustable)

Fast lifting speed

23m/min

Fast feed speed

33m/min

Rotation torque

10000Nm; 5000Nm

Rotation speed

0-75r/min

0-150r/min

Small winch lifting force

1.5t

Walking speed

2.5Km/h

wire rope length

60m

Feeding efficiency

10-35m/h

Grade ability

21 °

Working angle

45-90 °

Weight

12t

Whole dimension

7*2. 1*2.8 m

Adaptable to rock types

f=6-20

Application formation

Loose layer and bedrock

Drill method

Air reverse circulation drilling, down-the-hole hammer drilling

Hammer

Middle pressure and high air pressure series



Certificate



Full Hydraulic Crawler Mounted RC Drill Rig For Bore Hole Hard Rock Drilling 0



Customer Visting

Full Hydraulic Crawler Mounted RC Drill Rig For Bore Hole Hard Rock Drilling 1

Company Profile

Full Hydraulic Crawler Mounted RC Drill Rig For Bore Hole Hard Rock Drilling 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ


Q: How can we choose a suitable RC drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.



Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 set. Normally for drill rig, the delivery time is about 20 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
